Component Location - 1 Of 2
WARNING: This page is about a different variant/trim than selected.

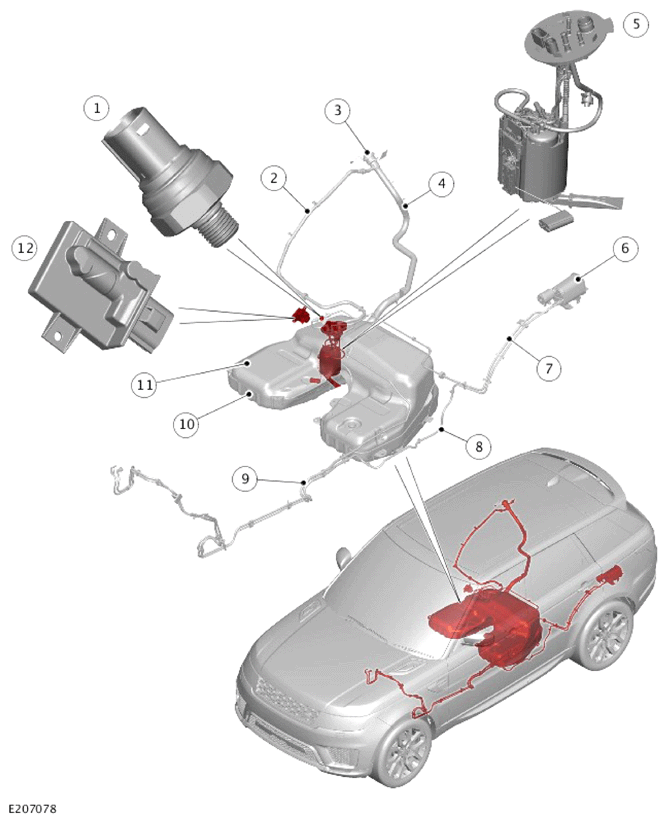

| ITEM | DESCRIPTION |
|---|---|
| 1 | Low fuel pressure sensor |
| 2 | Fuel tank breather |
| 3 | Fuel filler cap |
| 4 | Fuel filler pipe |
| 5 | Fuel pump module |
| 6 | Evaporative Emission (EVAP) canister |
| 7 | Fuel tank ventilation pipe to the EVAP canister |
| 8 | EVAP canister pipe to the purge valve |
| 9 | Fuel delivery line |
| 10 | Fuel tank shield |
| 11 | Fuel tank assembly |
| 12 | Fuel Pump Driver Module (FPDM) |
