Upper Timing Cover (G2166861): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Disconnect the startup battery ground cable.
Refer to: SPECIFICATIONS .
Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L PETROL .
Partially drain the cooling system.
Refer to: the appropriate engine cooling information for the procedure. .
Remove the secondary bulkhead centre panel.
Refer to: SECONDARY BULKHEAD CENTER PANEL - INGENIUM I4 2.0L PETROL/TDV6 3.0L DIESEL/TDV8 4.4L DIESEL/V8 S/C 5.0L PETROL .
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

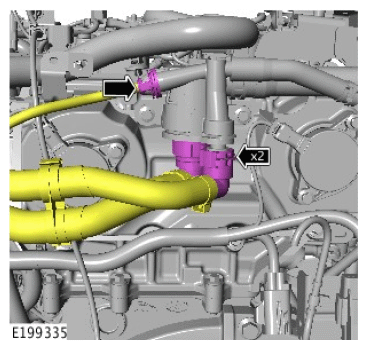

- Release the 2 coolant pipes from the underside of the coolant separator.
- Release the coolant pipe from the left side of the oil separator.
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

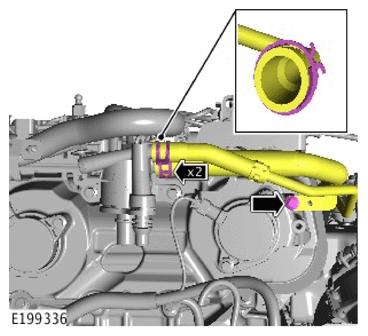

- Release the 2 coolant pipes from the right side of the coolant separator.
- Release the coolant pipe bracket from the upper timing cover assembly.
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

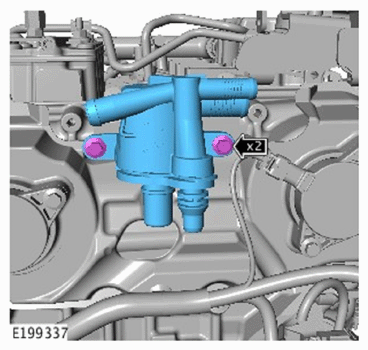

Remove the coolant separator.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

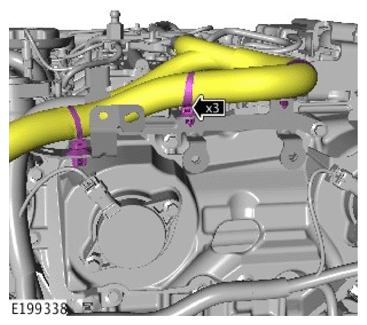

Remove the 3 clips and release the upper wiring harness from the support bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

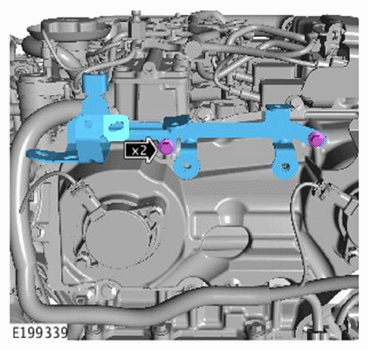

Remove the upper wiring harness support bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

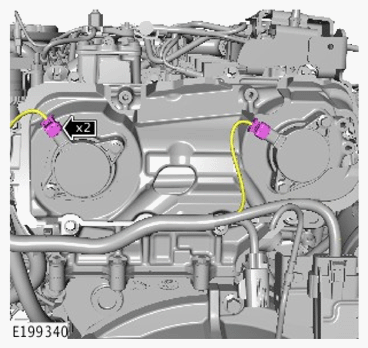

Disconnect the 2 electrical connectors from the variable valve timing solenoids.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

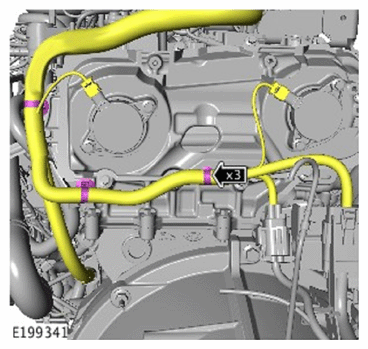

Remove the variable valve timing wiring harness from the 3 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

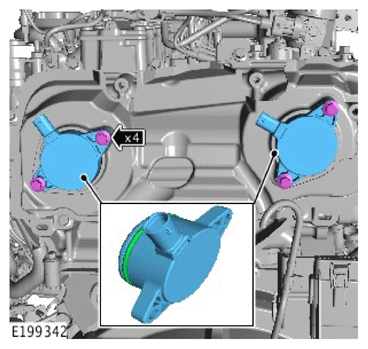

- Remove the variable valve timing solenoids.
- Remove and discard the O-ring seals from the variable valve timing solenoids.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the Noise, Vibration and Harshness (NVH) pad.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the upper timing cover.
NOTE: Remove and discard the gasket.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

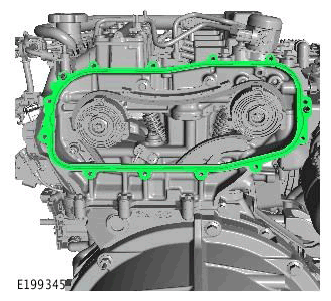

Remove the upper timing chain cover gasket.
