Right Engine Mount - INGENIUM I4 2.0L Petrol (G2173212): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the vacuum pipe from the engine mounting.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

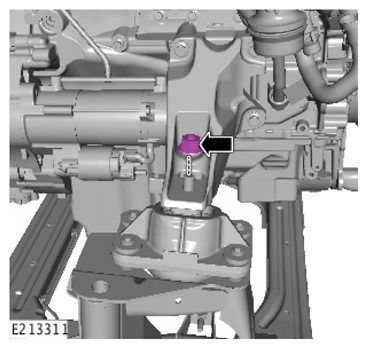

Remove and discard the engine bracket to engine mount nut.
CAUTION: Use a suitable 100mm X 100mm block of wood to support the engine.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Use a suitable hydraulic jack to support the engine as highlighted in the illustration.

General Equipment: Hydraulic floor jacks (2 tonnes minimum capacity)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

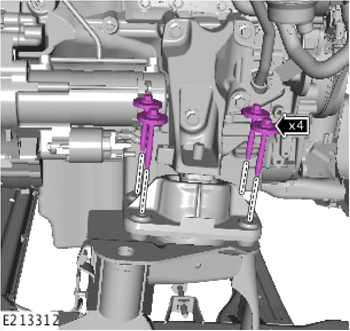

Remove and discard the 4 engine mounting to subframe bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

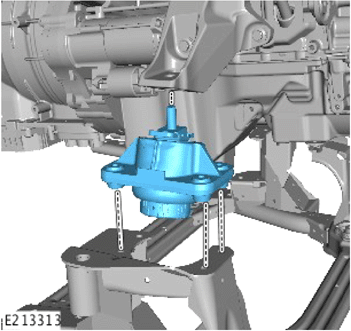

Remove the engine mount.
