Oil Pan - INGENIUM I4 2.0L Petrol (G2203974): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the 12 V system.
Refer to: SPECIFICATIONS .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Drain the engine oil.
Refer to: ENGINE OIL VACUUM DRAINING AND FILLING .
Remove the engine.
Refer to: ENGINE - INGENIUM I4 2.0L PETROL .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector.
- Release the 2 wiring harness clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 retaining nuts.
- Release the wiring harness clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Remove the charge air cooler bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the accessory drive belt tension and insert a suitable tool to lock the tensioner in place.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the bolt.
- Remove the accessory drive belt tensioner.
CAUTION: Only rotate the crankshaft clockwise.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the special tool.

Special Tool(s): JLR-303-1630
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the 4 crankshaft pulley bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the special tool.
  Special Tool(s): JLR-303-1630
- Remove the crankshaft pulley.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the 3 wiring harness clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Remove the bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 dust covers.
- Remove the 2 bolts.
- Remove the 2 idler pulleys.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 12 bolts.
- Remove the engine front cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the 2 clips.
- Remove the bolt.
- Remove the oil level gauge.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 4 transmission bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 4 bolts.
- Remove the Noise, Vibration and Harshness (NVH) material.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 17 oil pan retaining bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Loosen, but do not fully remove the 2 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

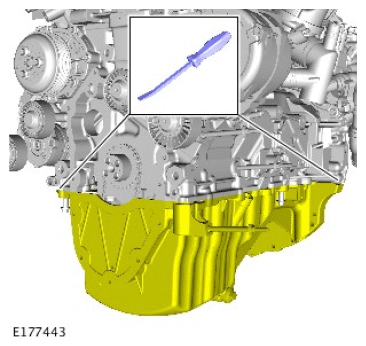

Using a suitable tool, pry the oil pan away from the engine at the indicated points.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Fully remove the 2 oil pan retaining bolts.
- Remove the oil pan.
