Oil Pan - INGENIUM I4 2.0L Petrol (G2203974): Installation

WARNING: This page is about a different variant/trim than selected.
  1. NOTE:
    • Make sure that all traces of the old sealant are removed from the mating faces.
    • Apply silicone gasket sealant or equivalent meeting Jaguar Land Rover specification.
    • Make sure that the sealant applied to the oil pan remains inside the fastener holes.

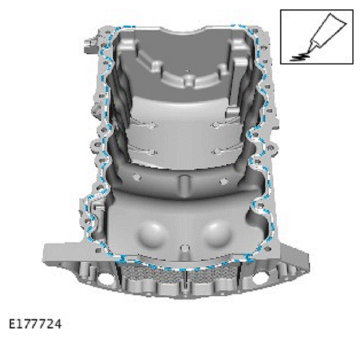

    G11714938Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Apply sealant to the oil pan as indicated.

    Material: Silicone Sealant LB (WSE-M4G323-A4/2U7J-M4G323-AA)

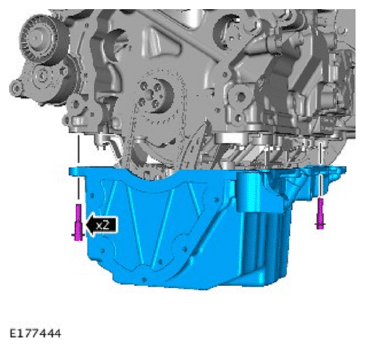

  2. G11714937Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the oil pan.
    • Install the 2 bolts finger tight.
  3. G11714935Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Tighten the 2 bolts.

    Torque  : 25Nm

  4. Fig 1: Oil Pan Bolts Tightening Sequence

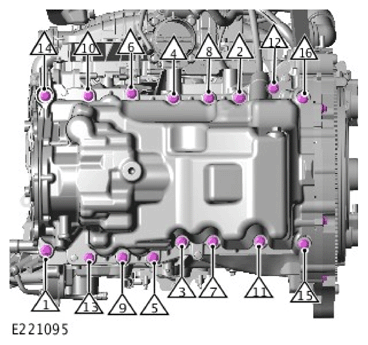

    G12004498Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and tighten the 17 bolts in the sequence illustrated.

    Torque  : 25Nm

    • Install the NVH  Material.
    • Install the 4 bolts.
  6. Install the 4 transmission bolts.

    Torque  : 48Nm

    • Install the oil level gauge.
    • Install the bolt.

      Torque  : 7Nm

    • Secure the 2 clips.
  8. CAUTION:
    • Inspect the front cover and replace if necessary.
    • Make sure that the surface of the front cover and the engine is clean and free of foreign material.
    • Steps 8-11 must be completed within 7 minutes of starting to apply the RTV.
    G14054862Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Apply RTV sealant in the position shown.

    Refer to: SPECIFICATIONS .

  9. G14054863Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the engine front cover.
    • Use the front cover alignment tool to align the front cover.

      Special Tool(s): JLR-303-1672

  10. CAUTION: Do not fully tighten the bolts at this stage.
    G14054864Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and finger tighten the 4 bolts.

  11. CAUTION: Continuous forward pressure must be applied on the tool.
    Fig 2: Engine Front Cover Tightening Sequence
    G14054865Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Fully tighten the 4 bolts in the sequence illustrated.

    Torque  : 12Nm

  12. CAUTION: This step must be completed within 40 minutes of starting to apply the RTV.
    G14054866Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and tighten the 8 bolts.

    Torque  : 12Nm

  13. G14054867Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the front cover alignment tool.

    Special Tool(s): JLR-303-1672

  14. CAUTION: This step is only required if the front cover is re-used.
    G14054868Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool.

      Special Tool(s): JLR-303-1628

    • Rotate the special tool and the crankshaft front seal 35° in a counter clockwise direction.
    • Remove the special tool and the crankshaft front seal.
    • Remove and discard the crankshaft front seal.
  15. CAUTION: This step is only required if the front cover is re-used.
    G14054869Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install a new crankshaft front seal to the special tool.

      Special Tool(s): JLR-303-1628

      Renew Part: Crankshaft front oil seal  Quantity: 1  .

    • Install the special tool and the crankshaft front seal.
    • Rotate the crankshaft front seal and special tool 35° in a clockwise direction.
    • Remove the special tool.
    • Install the 2 idler pulleys.
    • Install the 2 bolts.

      Torque  : 25Nm

    • Install the 2 dust covers.
    • Install the bracket.
    • Install the 2 bolts.

      Torque  : 9Nm

  18. Secure the 3 wiring harness clips.
    • Install the accessory drive belt tensioner.
    • Install the bolt.

      Torque  : 47Nm

  20. G14098506Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • CAUTION:
      • Make sure that the component is correctly located on the dowel.
      • Only rotate the crankshaft clockwise.

      Install the crankshaft pulley.

    • Install the special tool.

      Special Tool(s): JLR-303-1630

  21. G11716991Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the 4 new bolts and tighten in a diagonal sequence.

    Renew Part: Crankshaft pulley bolts  Quantity: 4  .

    Torque

    Stage 1: 37Nm

    Stage 2: 90°

  22. Remove the special tool.

    Special Tool(s): JLR-303-1630

  23. Install the accessory drive belt.
  24. Remove the locking tool to apply tension to the accessory drive belt.
    • Install the charge air cooler bracket.
    • Install the 2 bolts.

      Torque  : 90Nm

    • Secure the wiring harness clip to the charge air cooler bracket.
    • Install the 2 nuts.

      Torque  : 12Nm

    • Secure the 2 wiring harness clips to the charge air cooler bracket.
    • Connect the electrical connector.
  28. Install the engine.

    Refer to: ENGINE - INGENIUM I4 2.0L PETROL .

  29. Fill the engine oil.

    Refer to: ENGINE OIL VACUUM DRAINING AND FILLING .

  30. Connect the 12 V system.

    Refer to: SPECIFICATIONS .
