Lower Timing Cover - INGENIUM I4 2.0L Petrol - PHEV (G2172567): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING:

If the vehicle has been powered down, do not power up the vehicle until all the bonding points have been tested.
It is the responsibility of the Electric Vehicle Senior Authorised Person (EVSAP) to make sure they comply with any local legislation for work on High Voltages (HV).
The approved Personal Protection Equipment (PPE) must be worn where indicated within this procedure and not removed unless indicated within a step. All items of PPE must be checked for signs of damage before each use, if damaged, replacement PPE must be obtained before doing this procedure.

NOTE:

All Permit To Work (PTW) documents must be kept for a minimum of 5 years.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

WARNING: Jaguar Land Rover (JLR) Electric Vehicle Competent Person (EVCP) trained technicians only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

This procedure involves work on components associated with the High Voltage (HV) system. Only technicians qualified to Electric Vehicle Competent Person (EVCP) level or higher are allowed to do this procedure. It is mandated that all technicians involved with the steps in this procedure have read and understood the Electric Vehicle (EV) Safety Rules.

Refer to: ELECTRIC VEHICLE SAFETY RULES .
WARNING: Jaguar Land Rover Electric Vehicle Authorised Person (EVAP) trained technicians only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Power Down the High Voltage (HV) system. Only technicians qualified to EVAP level are allowed to perform this procedure. It is mandated that all technicians involved with the steps in this procedure have read and understood the Electric Vehicle Safety Rules.

Refer to: HYBRID ELECTRIC VEHICLE POWER DOWN/UP .
Refer to high voltage electrical connector operation and inspection document before disconnecting any high voltage electrical connectors.
Refer to: HIGH VOLTAGE ELECTRICAL CONNECTOR OPERATION AND INSPECTION .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING .
Disconnect the startup battery ground cable.
Refer to: SPECIFICATIONS .
Remove the crankshaft rear oil seal.
Refer to: CRANKSHAFT REAR SEAL - INGENIUM I4 2.0L PETROL - PHEV .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

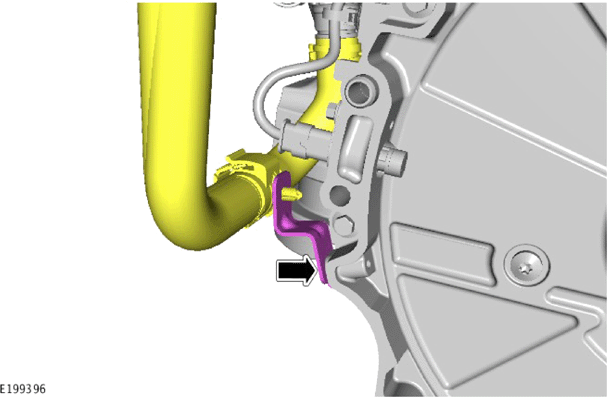

Remove the coolant pipe bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

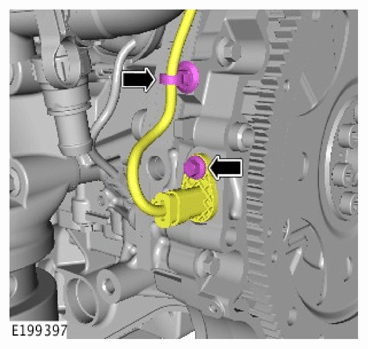

Remove the Crankshaft Position (CKP) sensor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

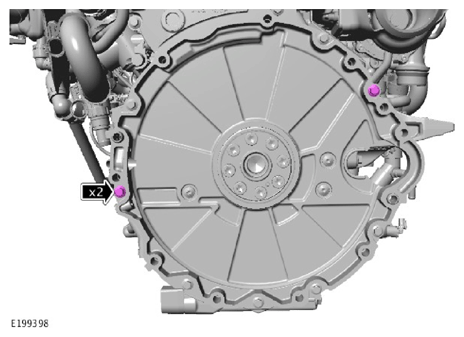

Remove the 2 dowel locating bolts.
CAUTION: Take extra care not to damage the surrounding components.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

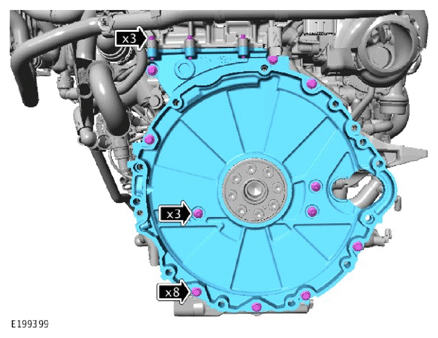

- Remove the remaining 14 bolts.
- Remove the lower timing chain cover.
CAUTION: Take extra care not to damage the surrounding components.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

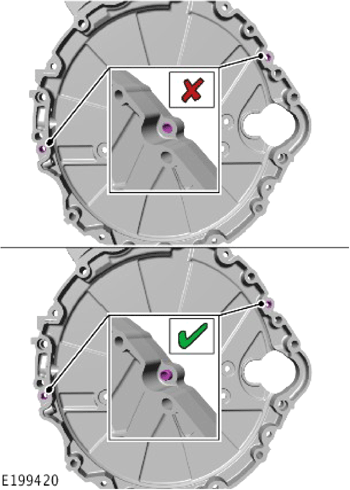

Using a suitable tool, position the dowels as shown in the illustration.
Using a suitable scraping tool, Make sure that all traces of the old sealant are removed from the mating faces.
