Left Engine Mount - INGENIUM I4 2.0L Petrol (G2173211): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING:

If the vehicle has been powered down, do not power up the vehicle until all the bonding points have been tested.
It is the responsibility of the Electric Vehicle Senior authorized Person (EVSAP) to make sure they comply with any local legislation for work on High Voltages (HV).
The approved Personal Protection Equipment (PPE) must be worn where indicated within this procedure and not removed unless indicated within a step. All items of PPE must be checked for signs of damage before each use, if damaged, replacement PPE must be obtained before doing this procedure.

NOTE:

All Permit To Work (PTW) documents must be kept for a minimum of 5 years.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

WARNING: Jaguar Land Rover (JLR) Electric Vehicle Competent Person (EVCP) trained technicians only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

This procedure involves work on components associated with the High Voltage (HV) system. Only technicians qualified to Electric Vehicle Competent Person (EVCP) level or higher are allowed to do this procedure. It is mandated that all technicians involved with the steps in this procedure have read and understood the Electric Vehicle (EV) Safety Rules.

Refer to: ELECTRIC VEHICLE SAFETY RULES .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Power Down the High Voltage (HV) system. Only technicians qualified to EVAP level are allowed to perform this procedure. It is mandated that all technicians involved with the steps in this procedure have read and understood the Electric Vehicle Safety Rules.

Refer to: HYBRID ELECTRIC VEHICLE POWER DOWN/UP .
Refer to high voltage electrical connector operation and inspection document before disconnecting any high voltage electrical connectors.
Refer to: HIGH VOLTAGE ELECTRICAL CONNECTOR OPERATION AND INSPECTION .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD .
Remove the charge air cooler outlet pipe.
Refer to: CHARGE AIR COOLER OUTLET PIPE .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the vacuum pipe from the engine mounting.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

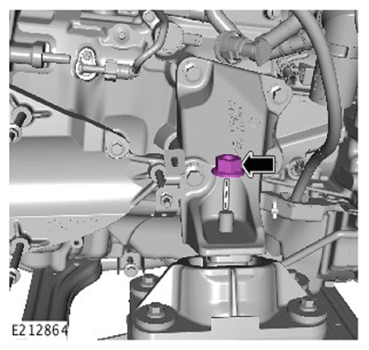

Remove and discard the engine bracket to engine mount nut.

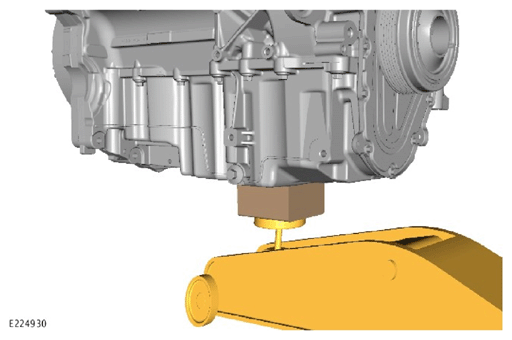

CAUTION: Use a suitable 100mm X 100mm block of wood to support the engine.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Use a suitable hydraulic jack to support the engine as highlighted in the illustration.

General Equipment: Hydraulic floor jacks (2 tonnes minimum capacity)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

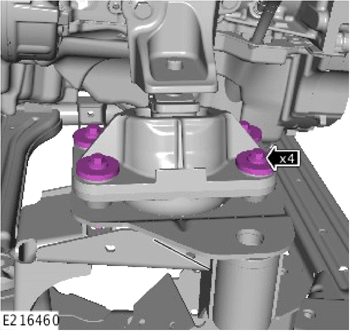

Remove and discard the 4 engine mounting to subframe bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

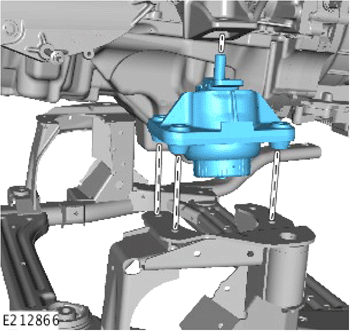

Remove the engine mount.
