Crankshaft Rear Seal - INGENIUM I4 2.0L Petrol - PHEV (G2173076): Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

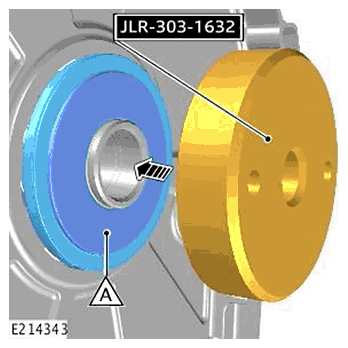

Position the new crankshaft rear oil seal and plastic alignment spacer provided (A) onto the crankshaft and partially install the crankshaft rear oil seal on the crankshaft using the special tool.

Install the Special Tool(s): JLR-303-1632
Remove the crankshaft rear oil seal plastic alignment spacer.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

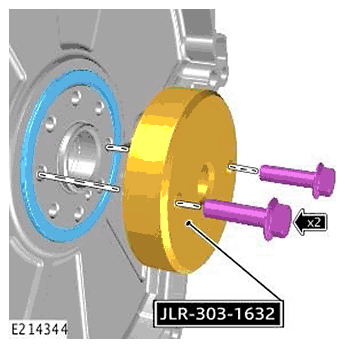

- Using the special tool, install the crankshaft rear oil seal.
  Special Tool(s): JLR-303-1632
- Remove the 2 retaining bolts and special tool after the crankshaft rear oil seal is installed.
Install the drive plate.
Refer to: DRIVE PLATE .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Power Up the HV system. Only technicians qualified to EVAP level are allowed to perform this procedure. It is mandated that all technicians involved with the steps in this procedure have read and understood the Electric Vehicle Safety Rules.

Refer to: HYBRID ELECTRIC VEHICLE POWER DOWN/UP .
