Crankshaft Pulley - INGENIUM I4 2.0L Petrol - PHEV (G2173074): Installation

The following step(s) applies to:

Vehicles with PHEV crankshaft pulley

1. CAUTION: Make sure that the component is correctly located on the dowel.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Install the crankshaft pulley.
   • Install the special tool.

     Special Tool(s): JLR-303-1630

2. CAUTION: Tighten the bolts in a diagonal sequence.

   Install the crankshaft pulley bolts.

   Renew Part: Crankshaft pulley bolts  Quantity: 4  .

   Torque

   Stage 1: 37Nm

   Stage 2: 90°

3. Remove the special tool.

   Special Tool(s): JLR-303-1630

The following step(s) applies to:

Vehicles with MHEV crankshaft pulley

1. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Install the crankshaft pulley.
   • Install the special tools.

     Special Tool(s): JLR-303-1630  , JLR-303-1686

2. CAUTION:

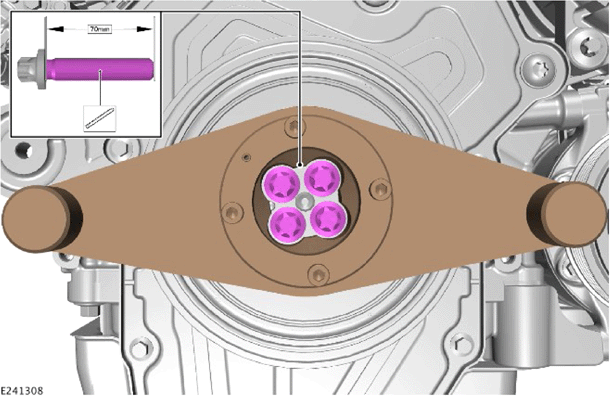

   • Before installing the new crankshaft pulley bolts check the length of the thread as shown in the illustration. The new bolts must be 70mm in length.
   • Tighten the bolts in a diagonal sequence.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Install and tighten the 4 bolts.

   Renew Part: Crankshaft pulley bolts  Quantity: 4  .

   Torque

   Stage 1: 37Nm

   Stage 2: 90°

3. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Remove the special tools.

   Special Tool(s): JLR-303-1686  , JLR-303-1630

The following step(s) applies to:

All vehicles

1. Install the Belt Integrated Starter Generator (BISG) drive belt.

   Refer to: BELT INTEGRATED STARTER GENERATOR DRIVE BELT - INGENIUM I4 2.0L PETROL - PHEV .

2. Connect the startup battery ground cable.

   Refer to: SPECIFICATIONS .
