Noise, Vibration And Harshness Pads
WARNING: This page is about a different variant/trim than selected.

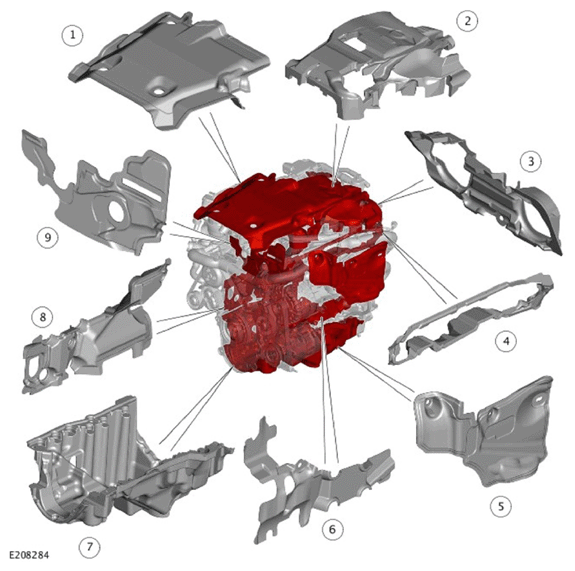

| ITEM | DESCRIPTION |
|---|---|
| 1 | Noise, Vibration and Harshness (NVH) pad - Cylinder head top |
| 2 | NVH pad - Continuously Variable Valve Lift (CVVL) assembly |
| 3 | NVH pad - Cylinder head rear |
| 4 | NVH pad - Left upper |
| 5 | NVH pad - Intake manifold |
| 6 | NVH pad - Cylinder block left |
| 7 | NVH pad - Oil pan |
| 8 | NVH pad - Cylinder block right |
| 9 | NVH pad - Front upper |
Noise, Vibration and Harshness (NVH) pads are fitted on the Ingenium I4 2.0L Petrol engine in order to reduce NVH experienced by the driver or passenger(s). The pads are made of either a pure foam or a multi layer mixed fiber and resin laminate composite depending on application.
The NVH package consists the following:
- A pad for each side of the engine cylinder block
- An engine cover located on the top of the engine
- An oil pan cover.
