Active Engine Mount System
WARNING: This page is about a different variant/trim than selected.

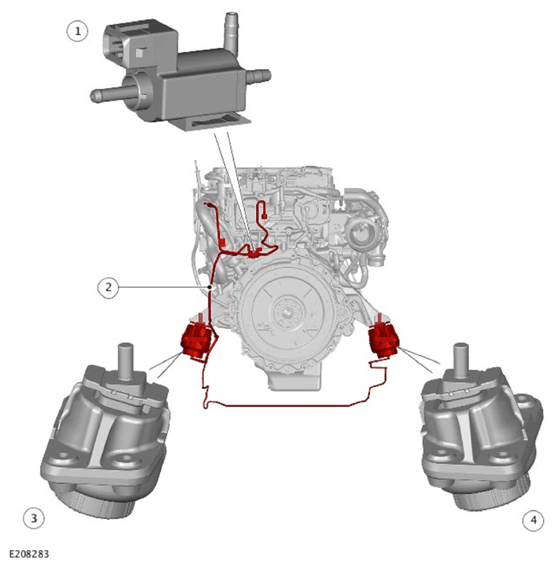

| ITEM | DESCRIPTION |
|---|---|
| 1 | Active engine mount solenoid |
| 2 | Vacuum pipe |
| 3 | Active engine mount - Left |
| 4 | Active engine mount - Right |
The active engine mount system comprises:
- Two active engine mounts
- Active engine mount solenoid
- Connecting vacuum pipes.
The Powertrain Control Module (PCM) controls the vacuum operated engine mounts via an active engine mount solenoid. If the active engine mount solenoid is activated the active engine mounts became soft. The active engine mounts operate at idle speed, and are switched off when the engine speed goes above a predetermined threshold. The active engine mounts are switched off when the engine speed increases to 1250 Revolutions Per Minute (RPM).
