Coolant Pump (G2348747): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Drain the coolant.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
NOTE: Clamp the coolant hose to minimize coolant lose.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

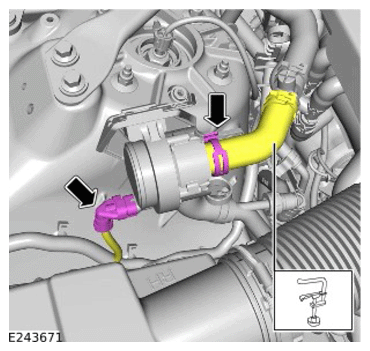

- Disconnect the electrical connector.
- Release the upper coolant hose from the auxiliary coolant pump.
NOTE: Clamp the coolant hose to minimize coolant lose.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

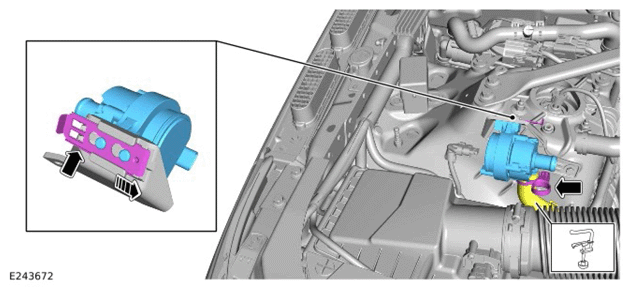

- Release the lower coolant hose from the auxiliary coolant pump.
- Release the clip.
- Remove the auxiliary coolant pump.
