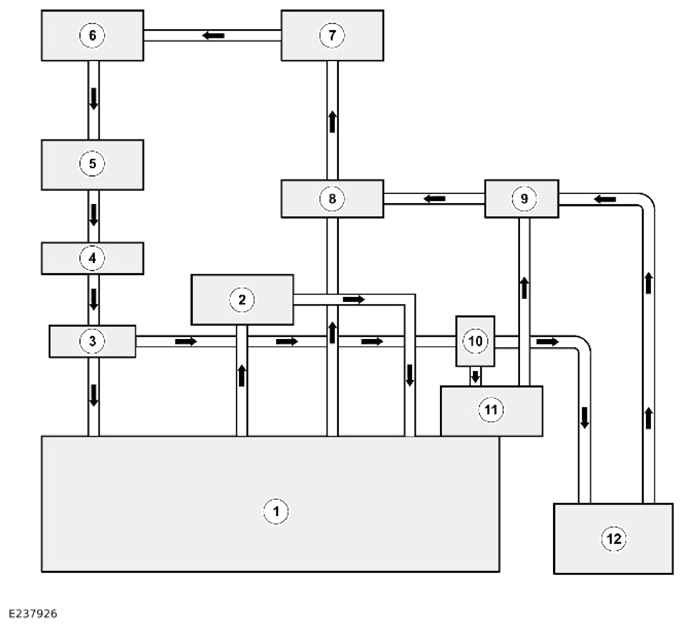

Supercharger Cooling Flow Diagram

G14058335Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Charge air cooler
2 Engine
3 3-way pipe connector
4 Charge air coolant pump
5 Separator
6 Left auxiliary radiator
7 Right auxiliary radiator
8 4-way pipe connector
9 3-way pipe connector
10 3-way pipe connector
11 Electric supercharger bypass valve
12 Electric supercharger
