Front Brake Hose (G2416911): Installation

CAUTION: Make sure that the brake hose is not twisted and is correctly located.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the brake hose.
  Renew Part: Brake hose Quantity: 1.

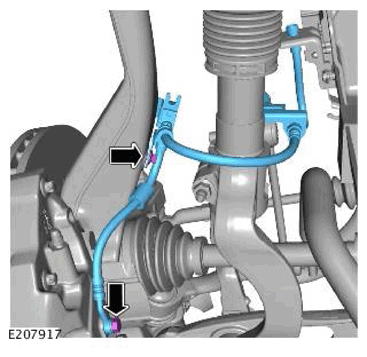

- Install the 2 bolts.
  Torque

  M8 bolt: 24Nm

  Banjo bolt: 32Nm
WARNING: Make sure that a new nut is installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

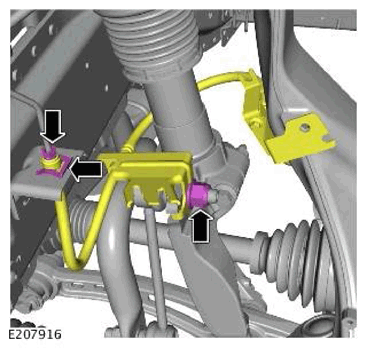

- Connect the brake pipe union.
  Torque : 15Nm
- Install a new nut.
  Renew Part: Stabilizer bar link upper nut Quantity: 1.
- Install the retaining clip.
NOTE: Make sure that the harness is routed to the position noted on removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

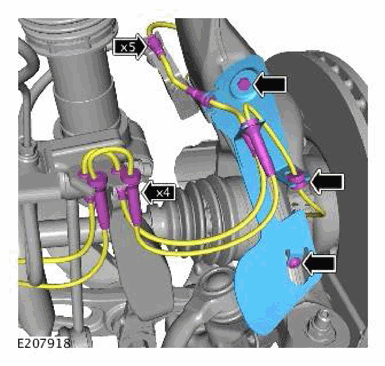

- Install the wiring harness bracket to the wheel knuckle.
  Torque

  M8 bolt: 24Nm

  M6 bolt: 18Nm
- Secure the brake pad wear sensor lead.
- Secure the wheel speed sensor lead.
Do the brake system bleeding process.
Refer to: BRAKE SYSTEM BLEEDING FIXED CALIPER - VEHICLES WITH: NON-ELECTRIC VEHICLES .

Refer to: BRAKE SYSTEM BLEEDING FLOATING CALIPER - VEHICLES WITH: NON-ELECTRIC VEHICLES .

Refer to: MANUAL BRAKE SYSTEM BLEED - VEHICLES WITH: PHEV .
Install the wheel and tire.
Refer to: WHEEL AND TIRE .
