Brake Master Cylinder - INGENIUM I4 2.0L Petrol - PHEV (G2416917): Removal

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations for left hand drive, right hand drive vehicles are similar.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the cowl panel grille.
Refer to: COWL PANEL .
Remove the brake fluid reservoir.
Refer to: BRAKE FLUID RESERVOIR - INGENIUM I4 2.0L PETROL - PHEV .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

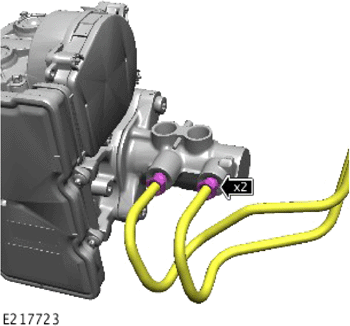

Release the 2 brake line unions from the brake master cylinder.
CAUTION: Take extra care not to damage the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

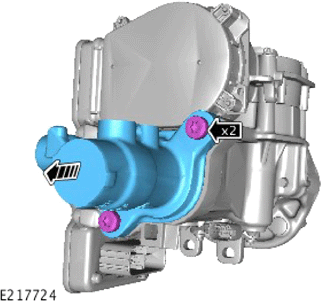

- Remove and discard the 2 master cylinder retaining bolts.
- Remove the brake master cylinder.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

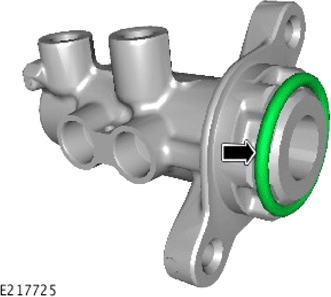

Remove and discard the O-ring seal.
