Brake Fluid Reservoir - INGENIUM I4 2.0L Petrol - PHEV (G2416916): Removal

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations for left hand drive, right hand drive vehicles are similar.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the plenum chamber finisher.
CAUTION: Be prepared to collect escaping fluids.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

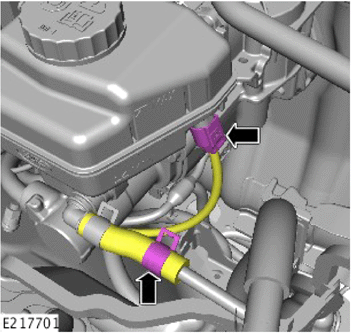

- Using a suitable suction device drain the brake fluid reservoir.
- Disconnect Anti-lock Brake System (ABS) supply pipe.
- Disconnect the brake fluid reservoir electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

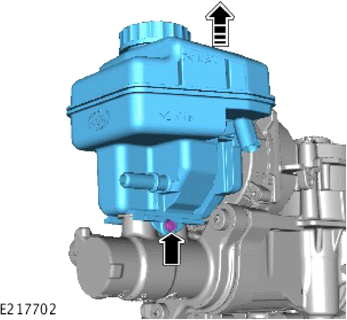

- Remove the brake fluid reservoir retaining bolt.
- Remove the brake fluid reservoir.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

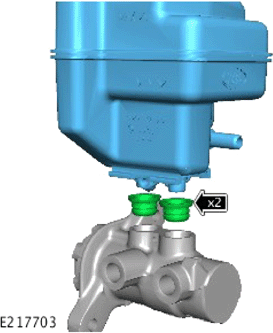

Remove and discard the seals.
