Hydraulic Brake Actuation - [+] With Armor (G1781190)

The brake master cylinder is unique to the armored vehicle with a different cylinder bore in comparison to the standard vehicle master cylinder. The modification is to compensate for the additional weight of the armored vehicle.

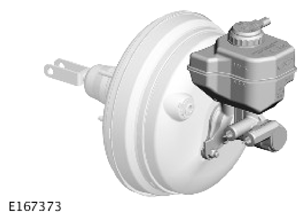

Brake master cylinder

G14108453Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
