Upper GLOVEBOX (G2162294): Removal

NOTE: The ignition must be switched off.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

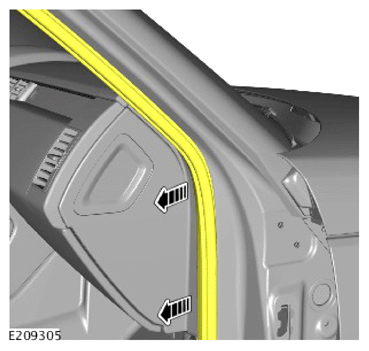

Release the door weatherstrip.
NOTE: Make sure only a suitable plastic tool is used.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

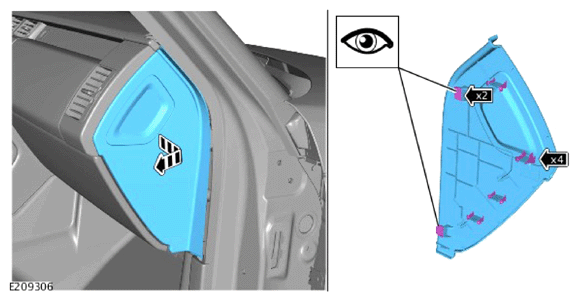

Remove the instrument panel end trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

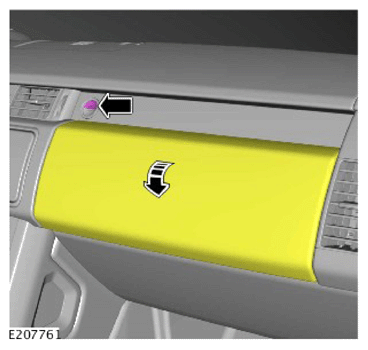

Open the upper glovebox.
CAUTION: Take extra care not to damage the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

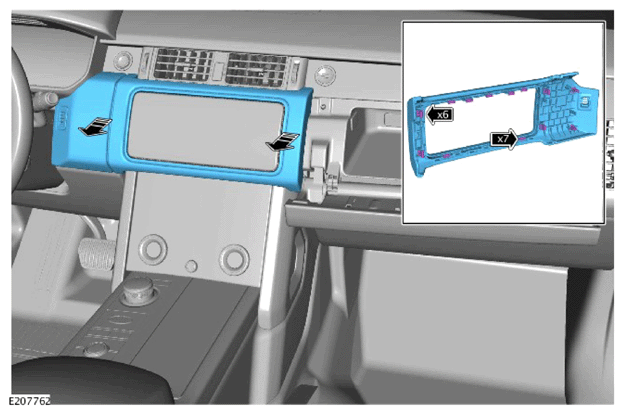

Remove the touchscreen trim cover.
CAUTION: Passengers side only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

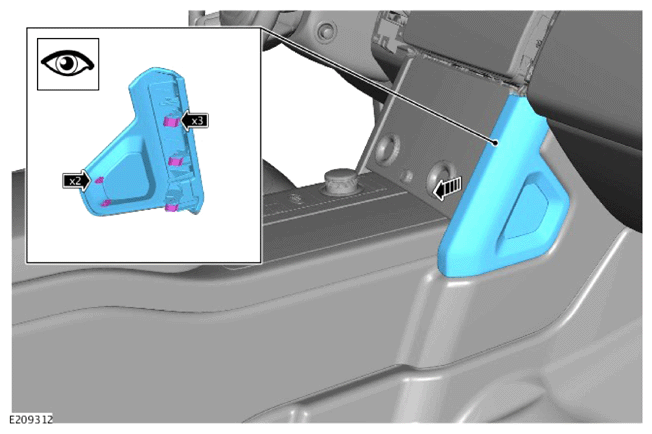

Remove the floor console front side panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

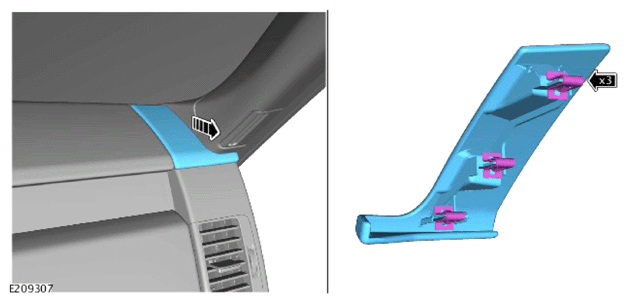

Remove the passenger side instrument panel end trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

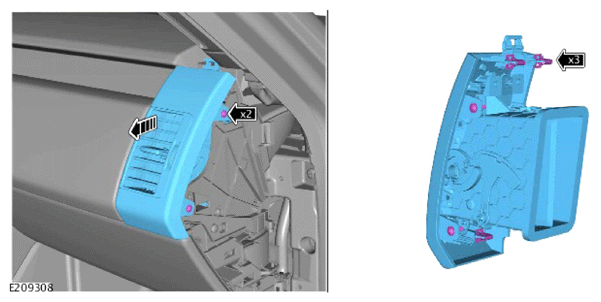

Remove the passenger side register assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

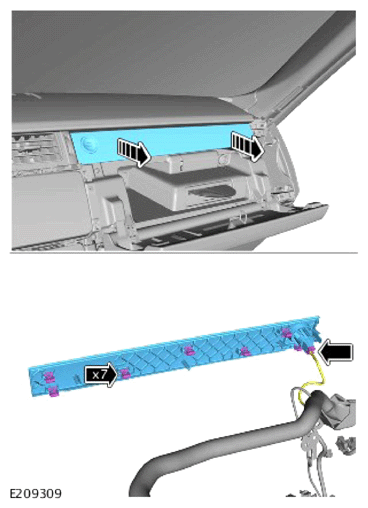

Remove the instrument panel veneer trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

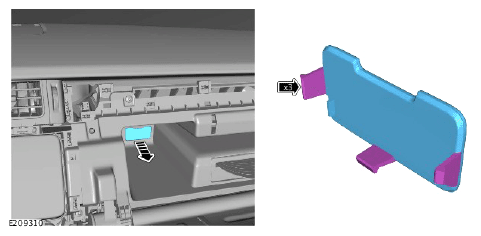

Remove the cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

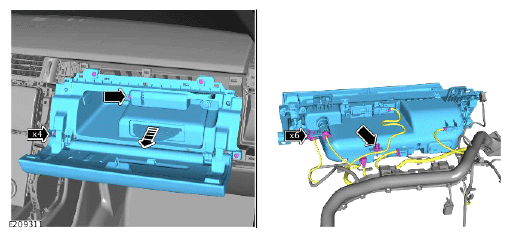

- Remove the 5 screws.
- Disconnect the 6 electrical connectors.
- Release the clip.
- Remove the upper glovebox.
NOTE: Only carry out the following step(s) if a new component is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

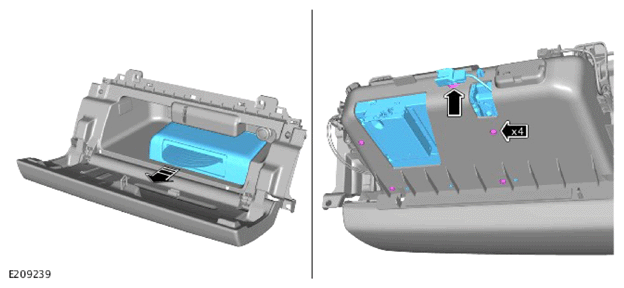

- Release the electrical connector clip.
- Remove the 4 screws.
- Remove the digital disc player.

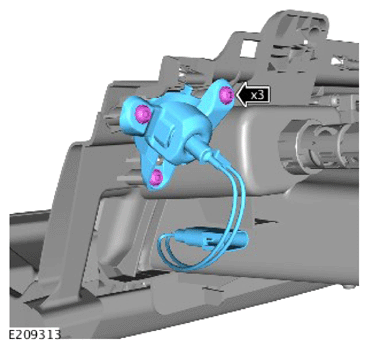

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 3 screws.
- Remove the glovebox switch.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

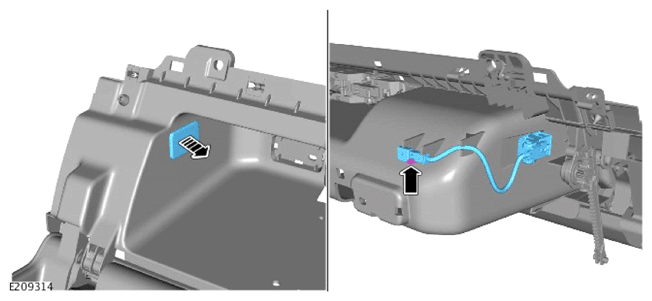

Remove the glovebox lamp.

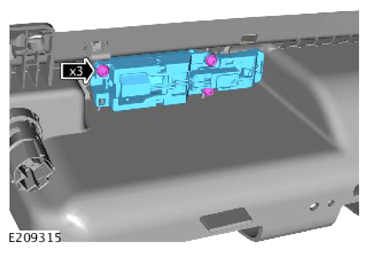

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 3 screws.
- Remove the glovebox latch.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

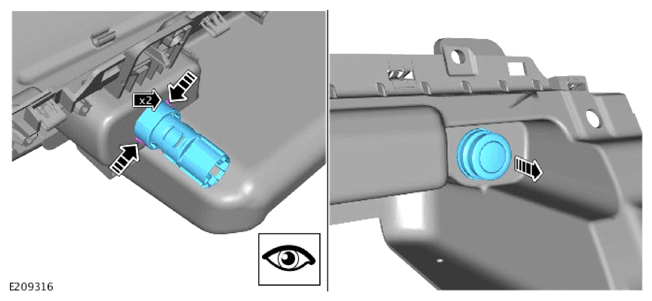

Remove the 12V accessory socket.
