Rear Cool Box Control Module - SV Autobiography (G2249785): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

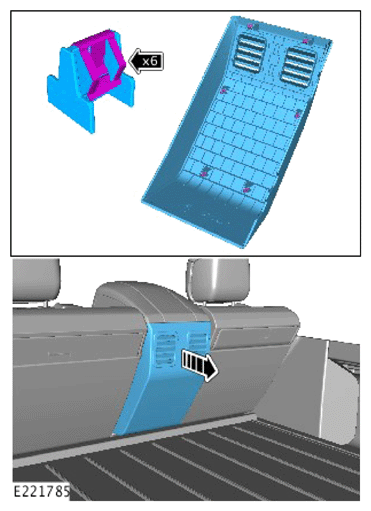

Remove the cool box rear trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

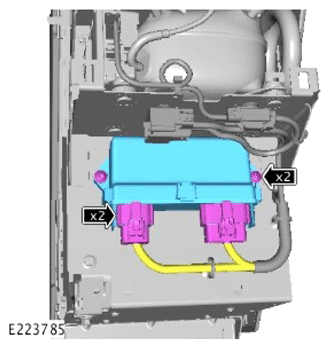

- Disconnect the 2 electrical connectors.
- Remove the 2 screws.
- Remove the rear cool box control module.
