Rear Cool Box - SV Autobiography (G2249782): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

NOTE: Only remove the cup holder if a new cool box is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Open the cool box cover door.

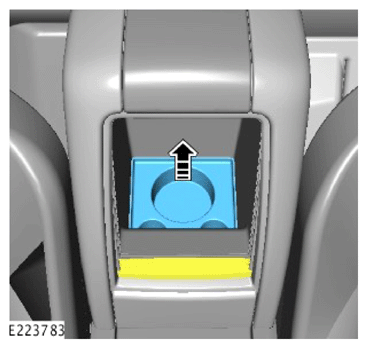

- Remove the cool box cup holder.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the cool box rear trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

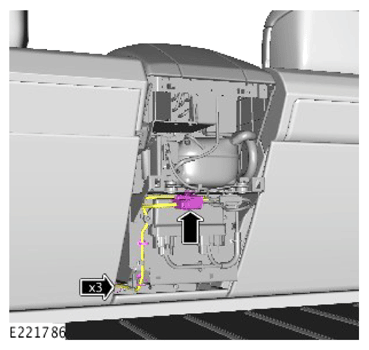

- Disconnect the electrical connector.
- Release the wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

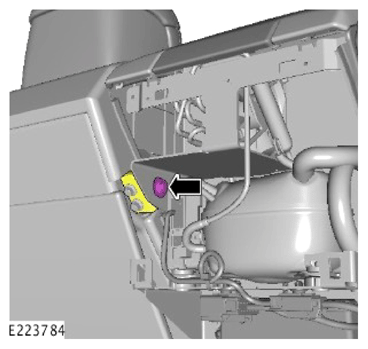

Loosen the retaining bracket bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

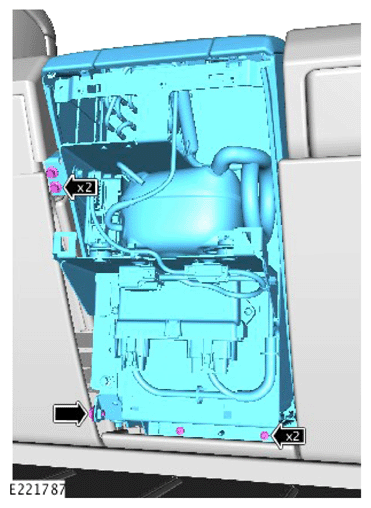

- Remove the 5 retaining bolts.
- Carefully remove the cool box.
