Instrument Cluster (G2156748)
>>

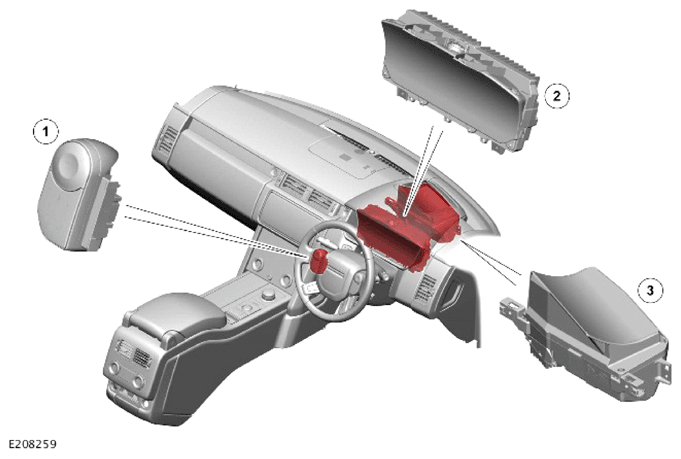

Component Location
>>
Instrument Cluster
Instrument Cluster
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM
DESCRIPTION
1
Left steering wheel switchpack
2
Instrument Cluster (IC)
3
Head Up Display (HUD)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
