Diagnostic Module Tank Leakage Pump (G2340248): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all components must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: SPECIFICATIONS .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the left rear wheel arch liner.
Refer to: REAR FENDER SPLASH SHIELD .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

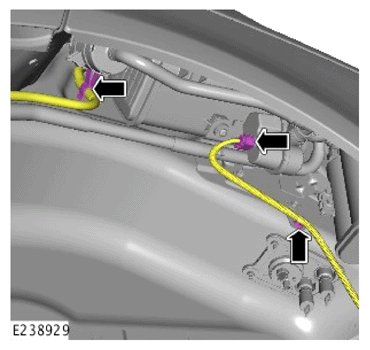

- Disconnect the electrical connector and release the wiring harness.
- Release the vacuum hose from the Diagnostic Module Tank Leakage (DMTL) filter.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

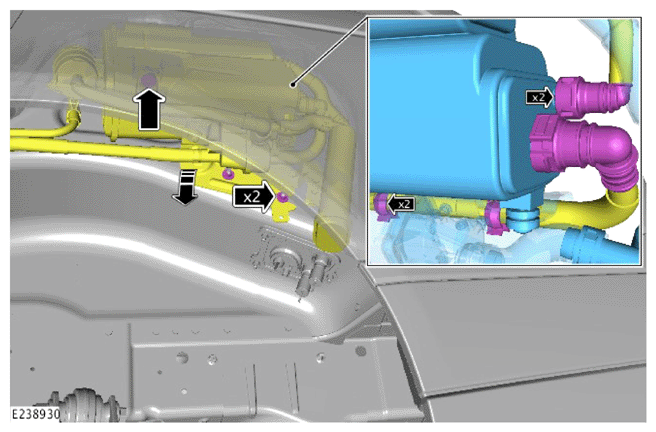

- Remove the bolt.
- Remove the 2 nuts.
- Release the evaporative emission canister.
- Disconnect and release the vacuum hoses.
- Remove the evaporative emission canister.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

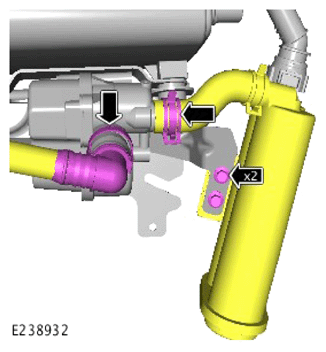

- Release the vacuum hoses from the DMTL pump.
- Remove the 2 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

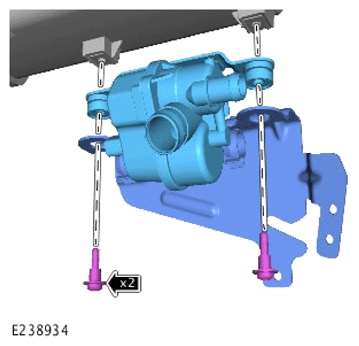

- Remove the 2 bolts.
- Remove the DMTL pump and evaporative emission canister bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

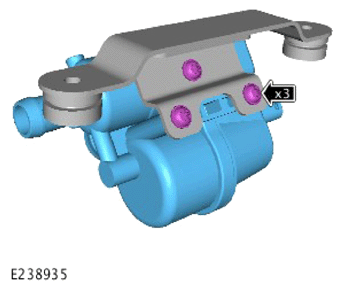

- Remove the 3 screws.
- Remove the DMTL pump.
