Radiator (G2202189): Removal

CAUTION:

Be prepared to collect escaping coolant.
Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD .
Partially drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

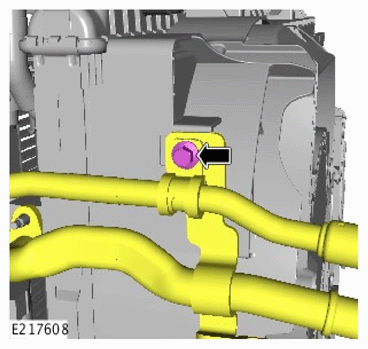

Remove the retaining bolt from the cooling fan shroud.
Remove the cooling fan motor and shroud.
Refer to: ELECTRIC COOLING FAN AND SHROUD .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the 2 retaining clips and reposition the 2 lower radiator cooling hoses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the 2 cooling module retaining clips.

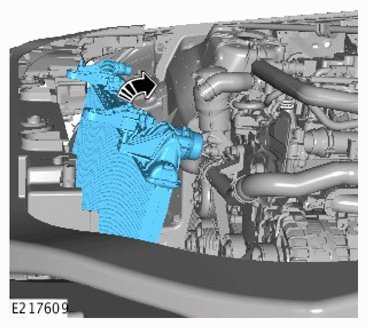

- Remove the 2 top cooling module locking pins and tilt the radiator towards the engine.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 retaining screws.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 retaining screws and the 2 lower radiator mounts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the radiator.
