Cooling Module (G2206421): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Recover the Air Conditioning (A/C) system.
Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the front bumper.
Refer to: FRONT BUMPER .
Drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
Remove the cooling fan motor and shroud.
Refer to: ELECTRIC COOLING FAN AND SHROUD .
CAUTION: Discard the O-ring seals.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

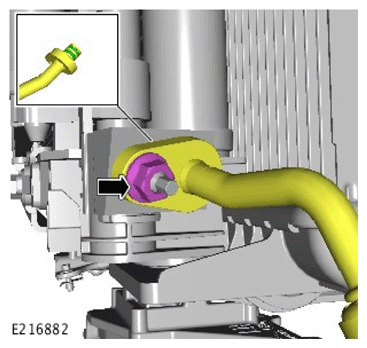

Disconnect and reposition the A/C pipe.
CAUTION: Discard the O-ring seals.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

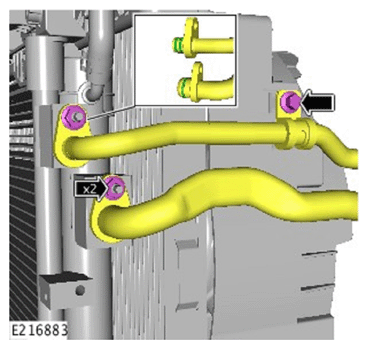

Disconnect and reposition the A/C pipes.
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

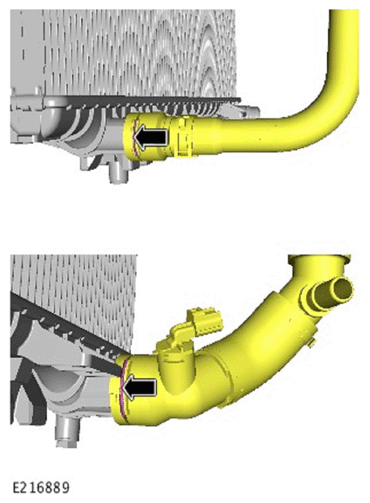

Disconnect the lower engine coolant hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

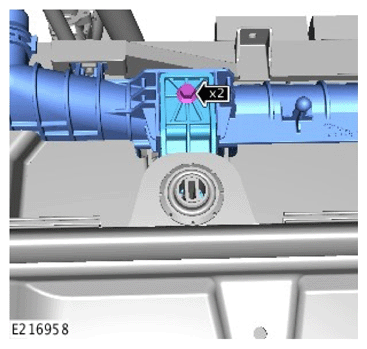

Remove the upper radiator brackets.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

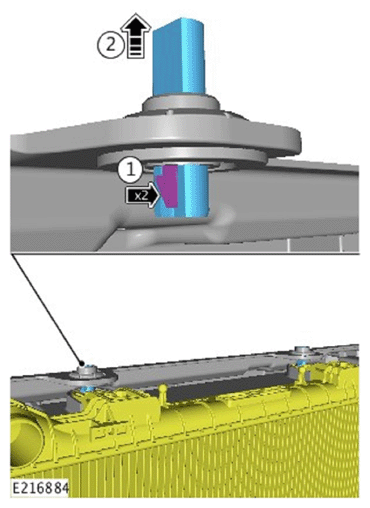

Remove the upper radiator retaining mounts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

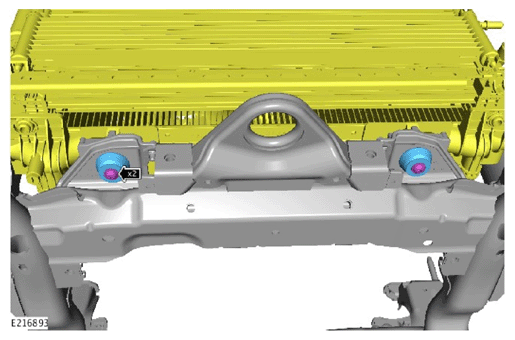

Remove the cooling module lower retaining bolts and rubber washers.
CAUTION: Always protect the cooling pack elements to prevent accidental damage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

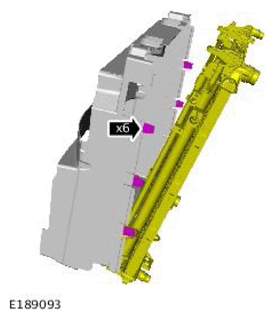

Disconnect the cooling module from the shroud.
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

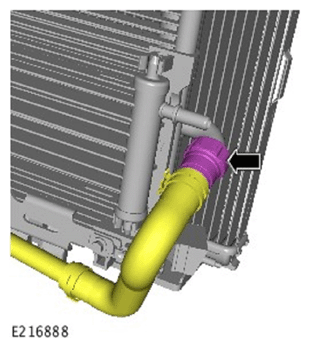

Disconnect the condenser cooling hose.
CAUTION: Always protect the cooling pack elements to prevent accidental damage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

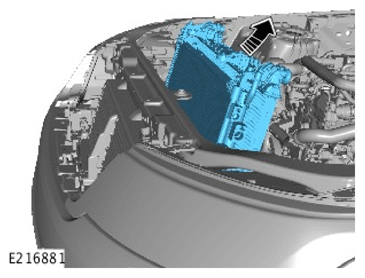

Remove the cooling module.
