Charge Air Radiator Coolant Pump (G2202332): Removal

WARNING: Be prepared to collect escaping coolant.

NOTE: This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: SPECIFICATIONS .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Partially drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
Remove the front left wheel.
Refer to: WHEEL AND TIRE .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

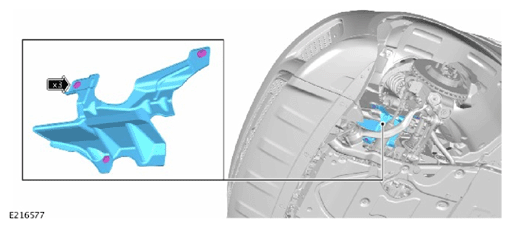

- Remove the 3 clips.
- Remove the inner wheel arch molding.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

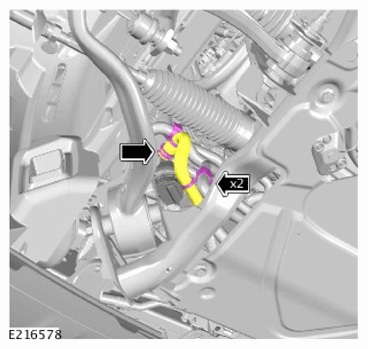

- Release the coolant hose.
- Release the 2 clips.
- Reposition the coolant hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

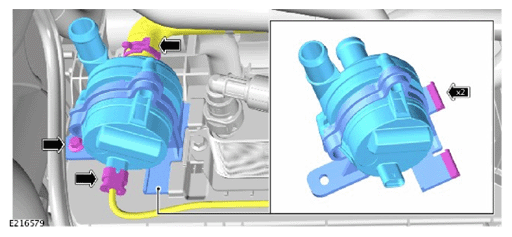

- Disconnect the electrical connector.
- Release the coolant hose.
- Remove the bolt.
- Remove the charge air radiator coolant pump.
