Charge Air Radiator (G2203728): Removal

CAUTION:

Be prepared to collect escaping coolant.
Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Evacuate the Air Conditioning (A/C) system.
Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the front bumper.
Refer to: FRONT BUMPER .
Partially drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
Remove the cooling module.
Refer to: COOLING MODULE .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

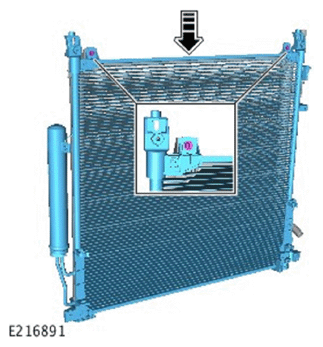

Remove the 2 retaining screws and the radiator.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 retaining screws and the charge air radiator.
