Component Location

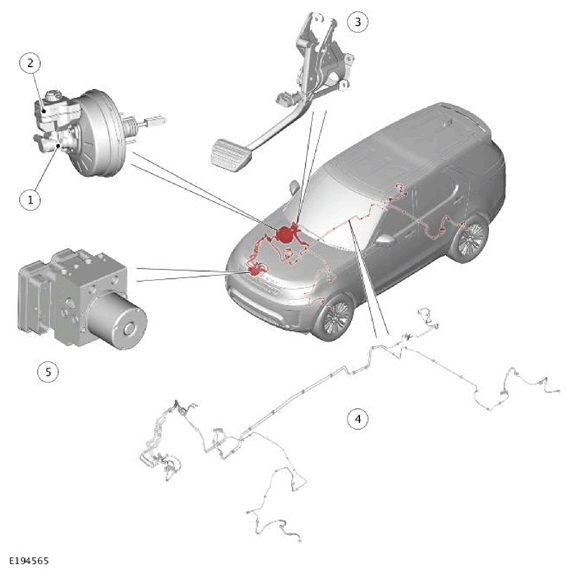

G11996071Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Brake master cylinder
2 Brake fluid reservoir
3 Brake pedal
4 Brake pipes and hoses
5 Anti-lock brake system control module (ABS)
