Instrument Cluster (G2162229): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
When a new instrument cluster is to be installed, the Land Rover approved diagnostic system must be connected to the vehicle and the instrument cluster renewal procedure followed.
19MY onward and non-NAS markets only - if a new instrument cluster is to be installed, a new Remote Function Actuator (RFA) may be required. All vehicle keys must be presented to complete the RFA renewal.

CAUTION: If the software number is K8D2-14C104-AC or L8B2-14C104-AC, a new RFA will be required.
NOTE:
- This step is only applicable to 19MY onward vehicles.
- Non-NAS Markets only.
Using the Land Rover diagnostic equipment, read the RFA software number.

General Equipment: Land Rover diagnostic equipment
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

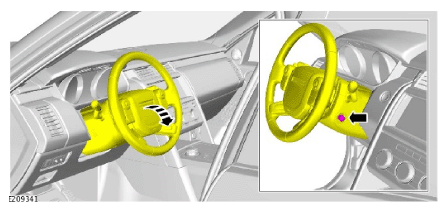

Reposition the steering column.
Disconnect the startup battery ground cable.
Refer to: SPECIFICATIONS
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

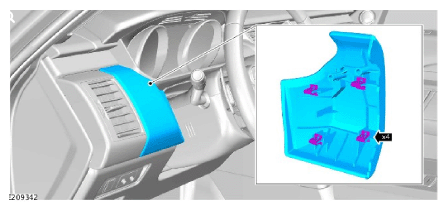

Remove the instrument panel outer trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

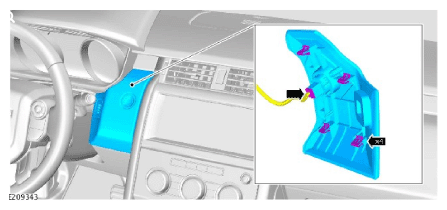

- Release the instrument panel inner trim.
- Disconnect the electrical connector.
- Remove the instrument panel inner trim.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

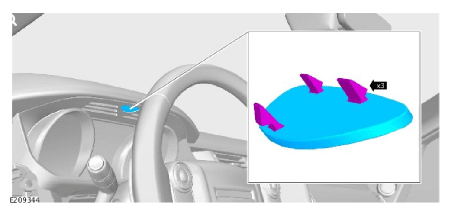

Remove the screw cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

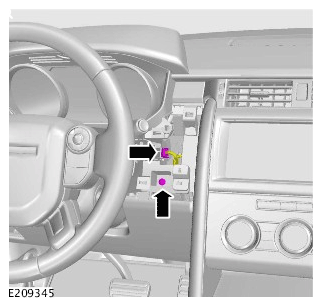

- Disconnect the electrical connector.
- Remove the screw.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

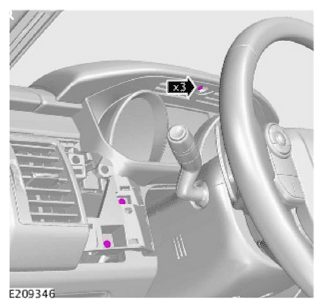

Remove the 3 screws.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

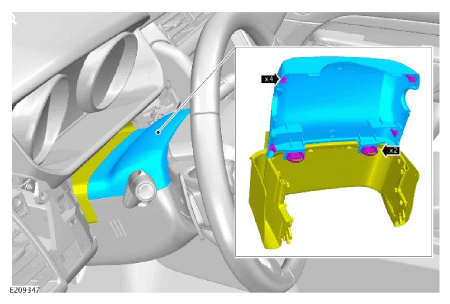

Remove the steering column upper trim cover assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

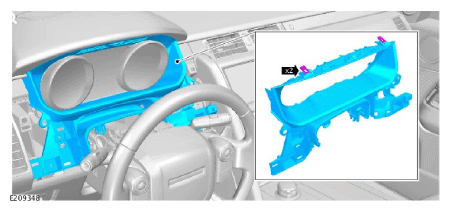

Remove the instrument cluster surrounding trim.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

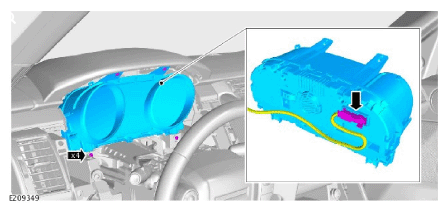

- Remove the 4 bolts.
- Disconnect the electrical connector.
- Remove the instrument cluster assembly.
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

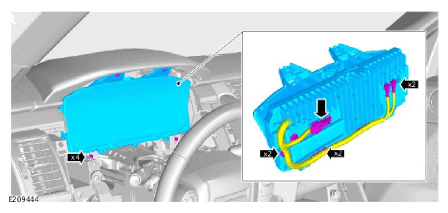

- Remove the 4 bolts.
- Disconnect the 3 electrical connectors.
- Release the 4 harness clips.
- Remove the instrument cluster assembly.
