Component Location

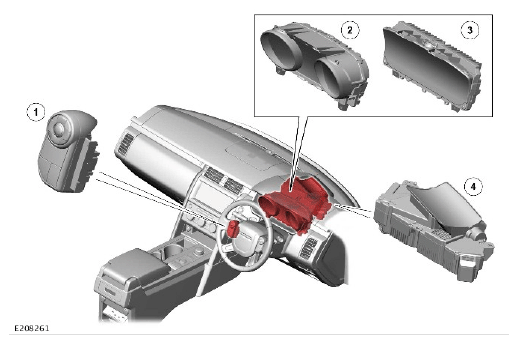

G12011251Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Left steering wheel switchpack
2 Instrument Cluster (IC) - Conventional display
3 IC - Virtual display
4 Head Up Display (HUD) - If equipped
