Thermostat Housing (G1947914): Installation

  1. WARNING: Be prepared to collect escaping fluids.
    NOTE: The retaining clips cannot be removed from the pipe.

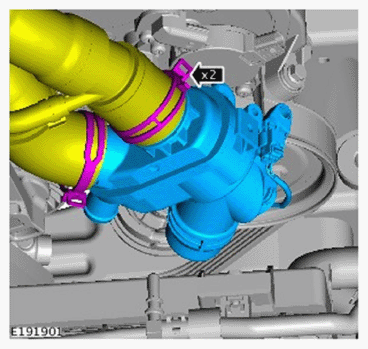

    G12005460Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the thermostat.
    • Install the thermostat pipes.

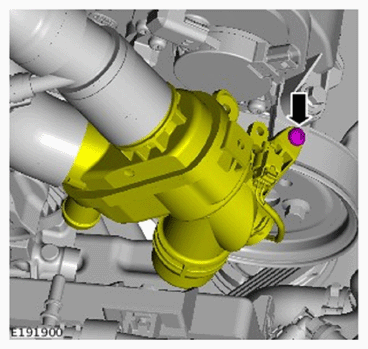

  2. G12005459Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 10 Nm

  3. WARNING: Be prepared to collect escaping fluids.

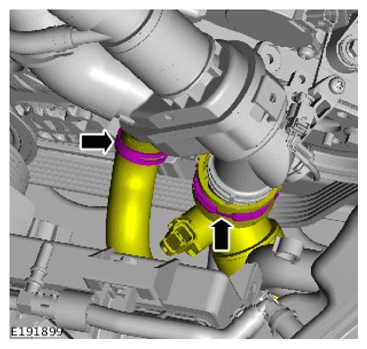

    G12005458Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the thermostat pipes.

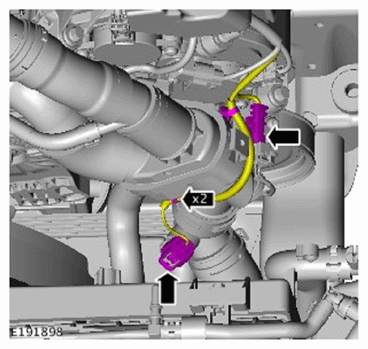

  4. G12005457Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Connect the electrical connectors.

  5. G11607322Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the pipes.

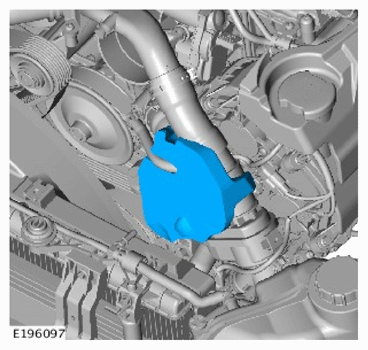

  6. G12005455Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the thermostat cover.

  7. Install the left side air cleaner outlet pipe.

    Refer to: LEFT AIR CLEANER OUTLET PIPE .

  8. Fill the cooling system.

    Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING .
