Radiator (G1947913): Removal

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Some components shown removed for clarity.

Evacuate the air conditioning (A/C) system.
Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING .
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Partially drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
Remove the front bumper.
Refer to: FRONT BUMPER .
Remove the cooling fan shroud.
Refer to: COOLING FAN SHROUD .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the air duct.
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the electrical connector.
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the coolant pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the coolant expansion tank.
NOTE: Keep the coolant expansion tank vertical.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Raise and support the coolant expansion tank a minimum of 110 mm from its original position.
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the coolant pipe.
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the coolant pipe.
CAUTION:
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
- Remove and discard the O-ring seals.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the air conditioning pipe from the condenser.
CAUTION:
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
- Remove and discard the O-ring seals.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the air conditioning pipe from the condenser.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Always protect the cooling pack elements to prevent accidental damage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the six clips securing the radiator assembly into the shroud.
CAUTION: Always protect the cooling pack elements to prevent accidental damage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

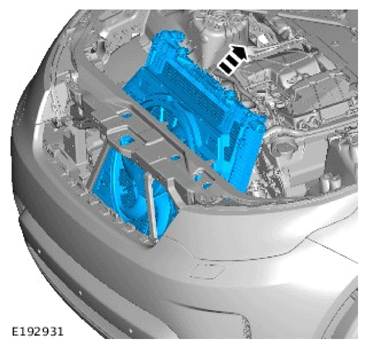

- Remove the radiator assembly from the vehicle.
- Do not disassemble further if the component is removed for access only.
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the cooling fan from the radiator assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the brackets.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the condenser from the radiator assembly.
