Cooling Module (G1988324): Removal

NOTE:

Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.
Some components shown removed for clarity.

Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING .
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
Refer to: FRONT BUMPER .
Refer to: COOLING FAN SHROUD .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

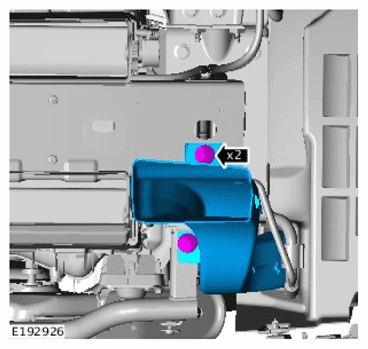

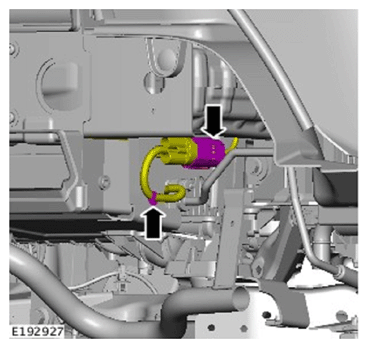

NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

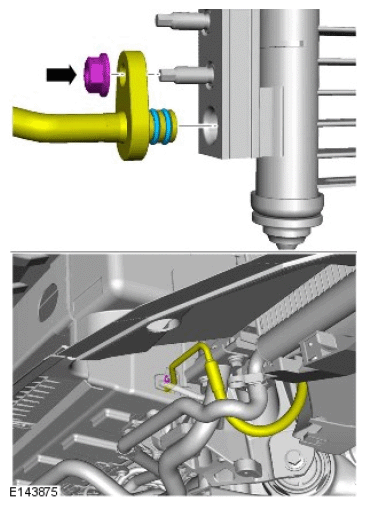

CAUTION:
- Remove and discard the O-ring seals.
- Make sure that all openings are sealed.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Air conditioning pipe to condenser O-ring seal Quantity: 1 .

Torque : 8 Nm
CAUTION: Be prepared to collect escaping coolant.

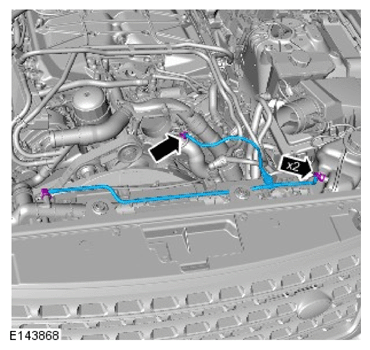

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

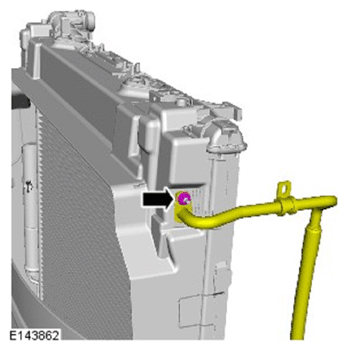

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 3 Nm

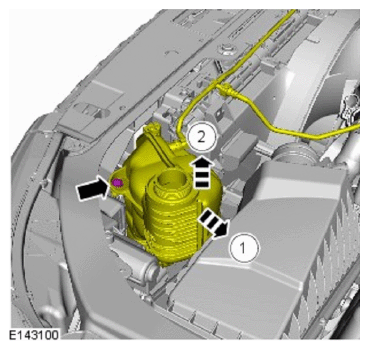

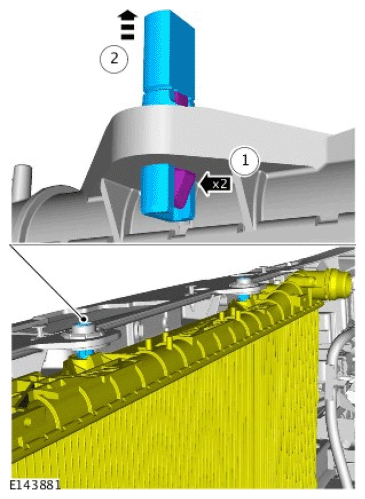

NOTE: Keep the coolant expansion tank vertical.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

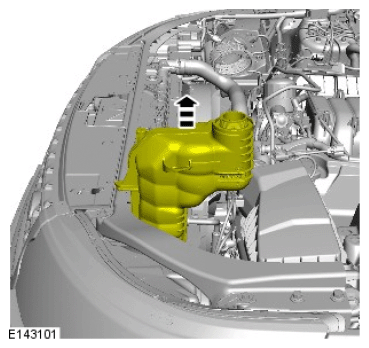

Raise the coolant expansion tank minimum 110 mm from its original position.

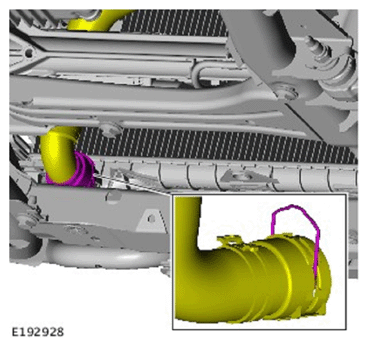

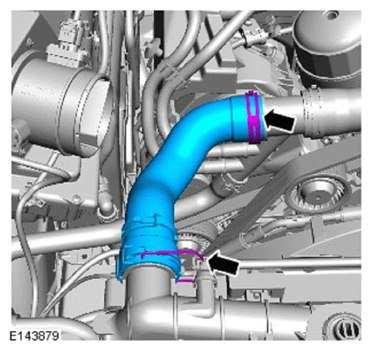

CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

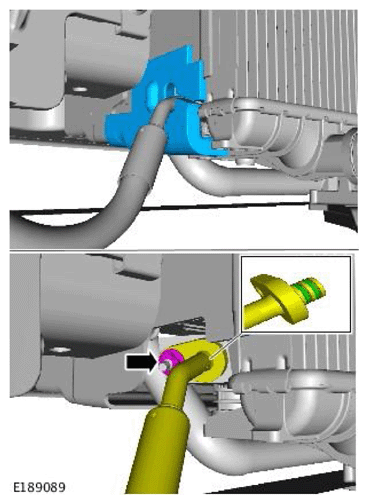

CAUTION:
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
- Remove and discard the O-ring seals.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Air conditioning pipe to condenser O-ring seal Quantity: 1 .

Torque : 8 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 8 Nm

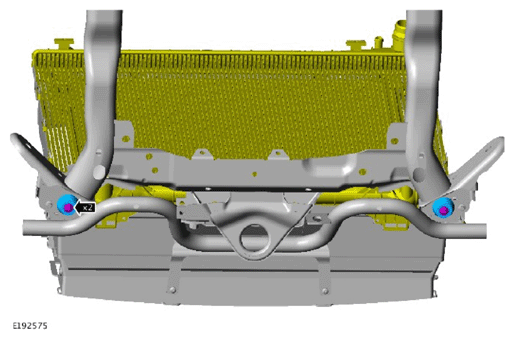

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 15 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

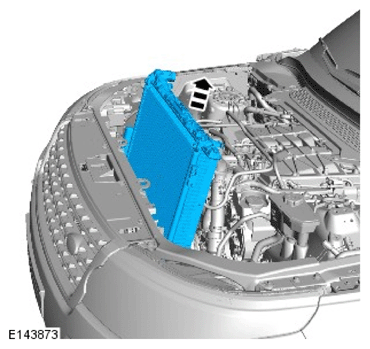

CAUTION: Always protect the cooling pack elements to prevent accidental damage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

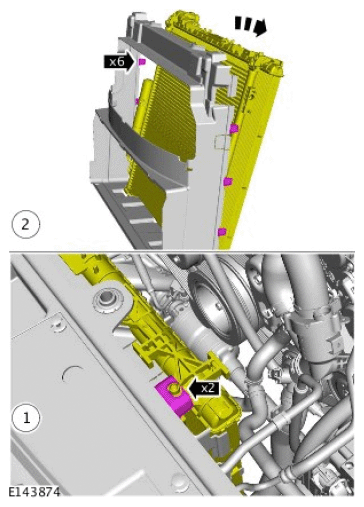

CAUTION: Always protect the cooling pack elements to prevent accidental damage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
