Cooling Fan Shroud (G1785203): Removal

NOTE:

Some components shown removed for clarity.
Some variation in the illustrations may occur, but the essential information is always correct.
Removal steps in this procedure may contain installation details.

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: COOLING FAN .
WARNING:
- Since injury such as scalding could be caused by escaping steam or coolant, make sure the vehicle cooling system is cool prior to carrying out this procedure.
- When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the coolant expansion tank cap.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the coolant expansion tank bleed screw.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

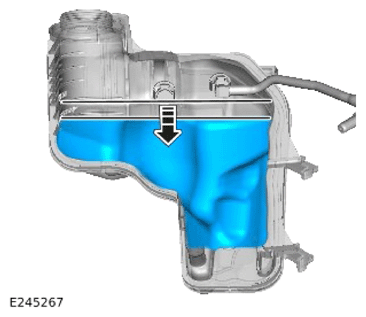

Allow the coolant level too drop sufficiently in the coolant expansion tank.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

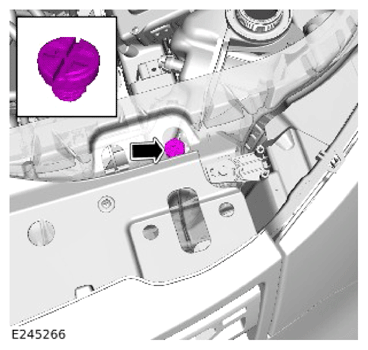

Install the coolant expansion tank bleed screw.

Torque : 9 Nm
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 7 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 7 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 7 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
