Cooling Fan Shroud (G1785203): Installation

  1. To install, reverse the removal procedure.
  2. Check and top up the coolant level.

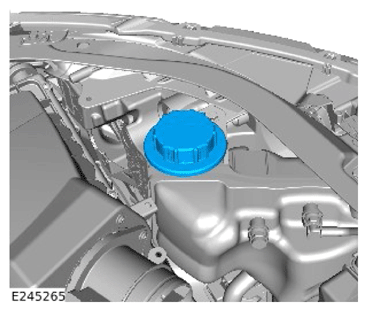

  3. CAUTION: Correct installation of the coolant expansion tank cap can be obtained by tightening the cap until 3 audible clicks are heard.
    G14057647Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the coolant expansion tank cap.
