Active Grille Air Shutter (G2006840): Removal

NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct
  • Removal steps in this procedure may contain installation details
  1. Remove the radiator grille.

    Refer to: RADIATOR GRILLE .

  2. CAUTION: The step must be carried out on both sides.

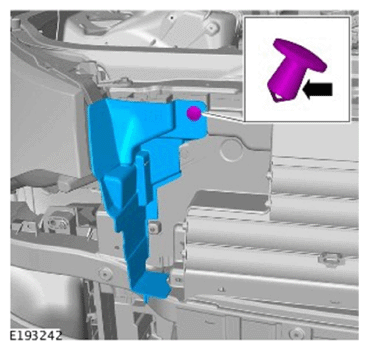

    G11709566Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the two air deflectors.

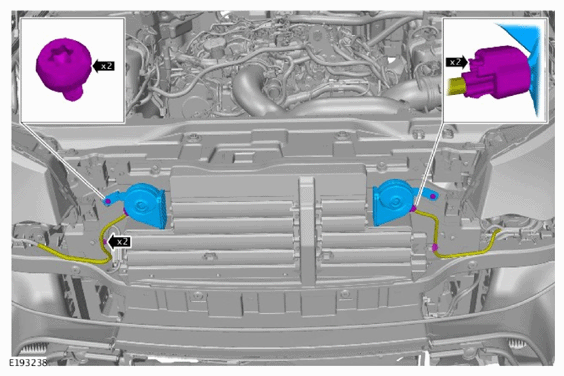

  3. G11709567Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the horns from the mounting brackets.

    Torque  : 5 Nm

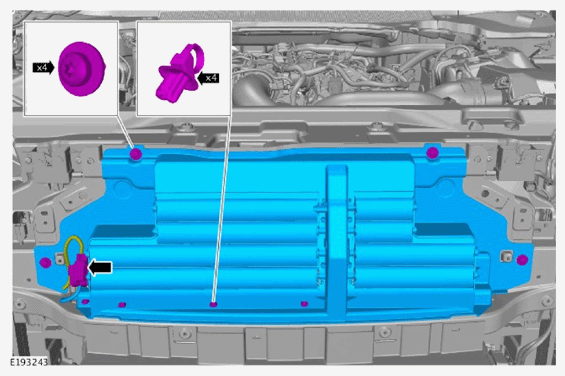

  4. G11709568Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the active grill air shutter.

    Torque  : 5 Nm
