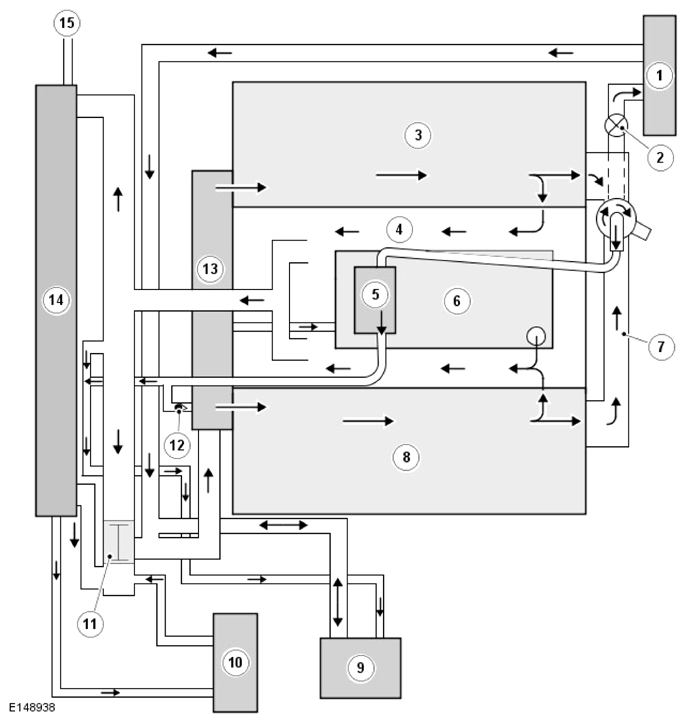

Schematic Diagram - Coolant Circuit Flow
| ITEM | DESCRIPTION |
|---|---|
| 1 | Heater core |
| 2 | Bleed screw |
| 3 | Cylinder head - Bank 1 |
| 4 | Cylinder block |
| 5 | Throttle body |
| 6 | Engine oil cooler |
| 7 | Heater manifold |
| 8 | Cylinder head - Bank 2 |
| 9 | Coolant expansion tank |
| 10 | Automatic Transmission Fluid (ATF) cooler |
| 11 | Electric thermostat |
| 12 | Check valve |
| 13 | Coolant pump |
| 14 | Radiator |
| 15 | Connection with supercharger cooling system |
