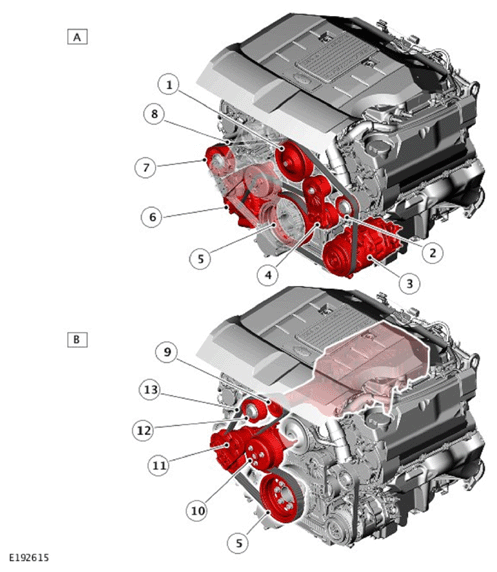

Component Location
| Item | Description |
|---|---|
| A | Accessory drive |
| B | Drive - Supercharger |
| 1 | Coolant pump pulley |
| 2 | Idler pulley |
| 3 | Air conditioning compressor |
| 4 | Accessory drive belt tensioner |
| 5 | Crankshaft pulley/mass damper |
| 6 | Generator |
| 7 | Idler pulley |
| 8 | Accessory drive belt |
| 9 | Supercharger drive pulley |
| 10 | Viscous cooling fan pulley |
| 11 | Belt - Supercharger tensioner |
| 12 | Idler pulley |
| 13 | Belt - Supercharger |
