Brake Disc - Vehicles With: 365 Mm Brake Disc (G2312477): Installation

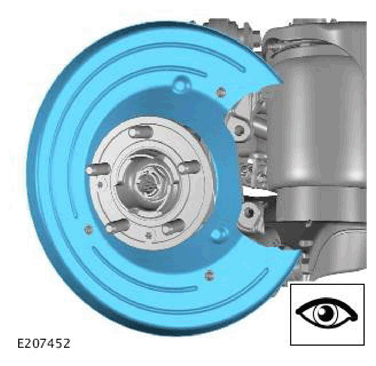

NOTE: Damaged brake disc shields must be replaced.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Make sure that the mating faces are clean and free of foreign material.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

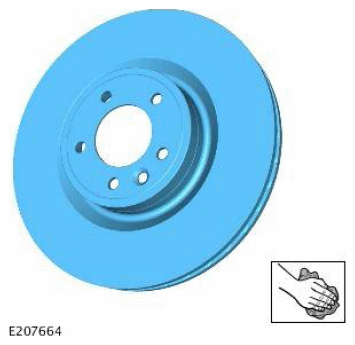

Clean the brake disc using brake cleaning fluid.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

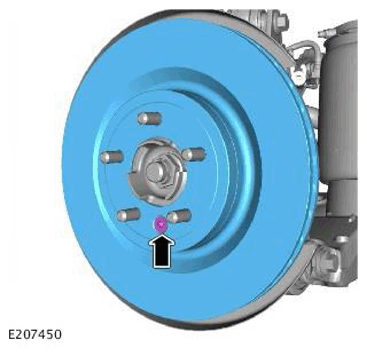

Install the brake disc.

Torque : 35 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the brake caliper carrier.

Renew Part: Brake caliper carrier bolt(s) Quantity: 2 .

Torque

Stage 1: 110 Nm

Stage 2: 120°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

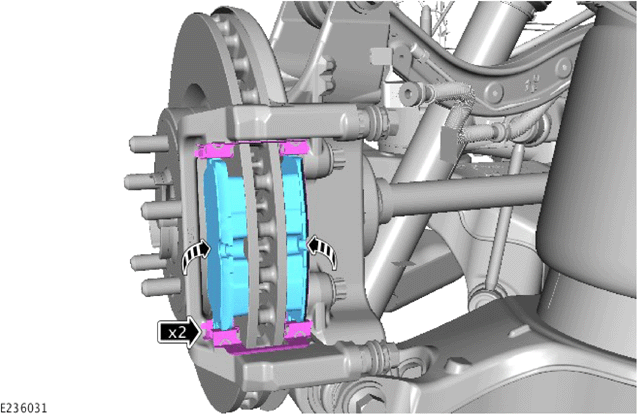

Install the brake pads.
CAUTION: Do not allow the brake caliper to hang on the brake hose.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

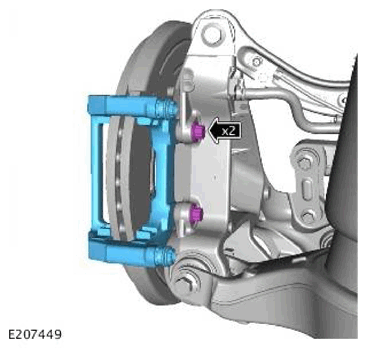

- Install the brake caliper.
- Install the 2 retaining bolts.
  Torque : 35 Nm

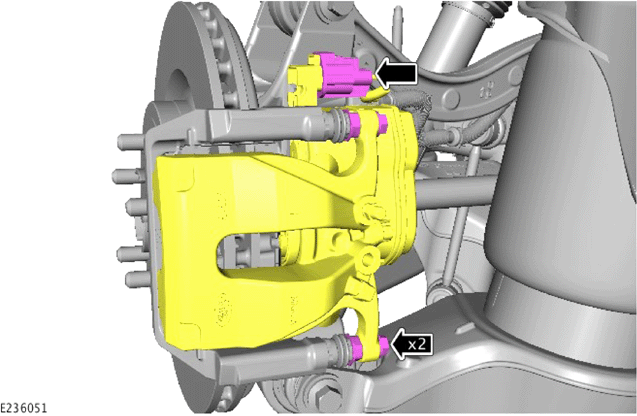

- Connect the Electric Park Brake (EPB).
NOTE: Right side only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

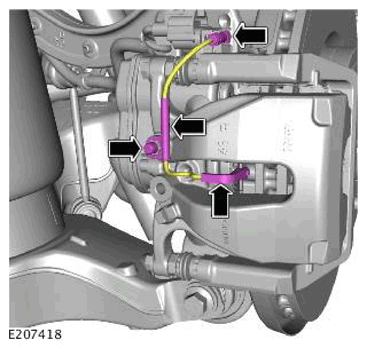

Install the brake pad wear sensor.
Repeat the above procedure for the other side.
Install the rear wheels.
Refer to: WHEEL AND TIRE .
Depress the brake pedal several times, check the fluid level in the brake fluid reservoir and top-up with brake fluid if necessary.
NOTE: This step is only required if the Jaguar Land Rover approved diagnostic equipment is not available.

Activate the park brake.

Refer to: ELECTRIC PARK BRAKE SERVICE MODE ACTIVATION AND DEACTIVATION .
Using the Jaguar Land Rover approved diagnostics equipment, calibrate the EPB.
General Equipment: Jaguar Land Rover approved diagnostic equipment
