Brake Disc - Vehicles With: 325 Mm Brake Disc (G2312475): Removal

CAUTION: Brake discs must be renewed in axle sets.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

If this component is being renewed because of a customer complaint, make sure to follow the brake system Diagnosis and Testing procedure.
Refer to: BRAKE SYSTEM (G2474292)
Connect the Jaguar Land Rover approved diagnostic equipment and set the Electric Park Brake (EPB) to the maintenance position.
General Equipment: Jaguar Land Rover approved diagnostic equipment
NOTE: This step is only required if the Jaguar Land Rover approved diagnostic equipment is not available.

Release the EPB.

Refer to: ELECTRIC PARK BRAKE SERVICE MODE ACTIVATION AND DEACTIVATION .
NOTE: This step is only required if the vehicle has no startup power.

Release the EPB.

Refer to: ELECTRIC PARK BRAKE RELEASE WHEN THE VEHICLE HAS NO ELECTRICAL POWER .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the wheel and tire.
Refer to: WHEEL AND TIRE .
CAUTION: The brake pad wear indicator sensor is easily damaged. Do not use a lever to remove the sensor. Use fingers only.

NOTE: Right side only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Inspect the brake pad wear sensor for signs of wear or damage. Install a new sensor if necessary.
CAUTION: Do not allow the brake caliper to hang on the brake hose.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the EPB.
- Remove the 2 retaining bolts.
- Remove the brake caliper.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

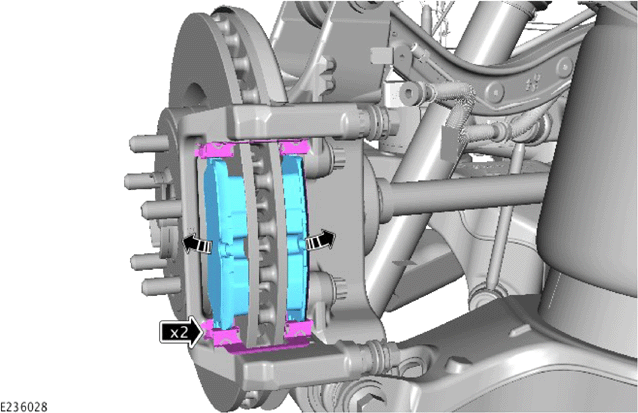

Remove the brake pads.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 retaining bolts.
- Remove the brake caliper carrier.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the retaining bolt.
- Remove the brake disc.
