Brake Vacuum Pump - INGENIUM I4 2.0L Petrol (G2148709): Removal

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Disconnect the startup battery ground cable.
Refer to: BATTERY, MOUNTING AND CABLES .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING

General Equipment: 2 post lift
Remove the oil pump chain.
Refer to the appropriate service information
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

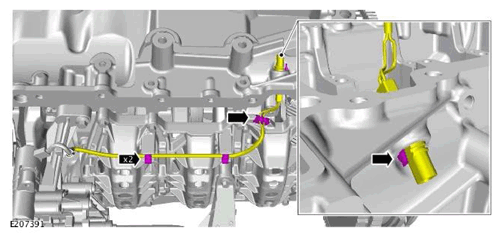

Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

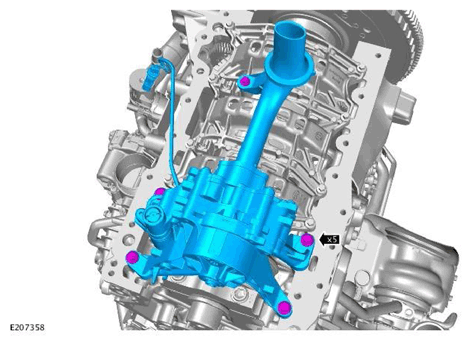

- Remove the 5 bolts.
- Remove the oil pump assembly with harness.
CAUTION: Inspect the seal, install a new component if damaged.

NOTE: Only carry out the following step(s) if a new component is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

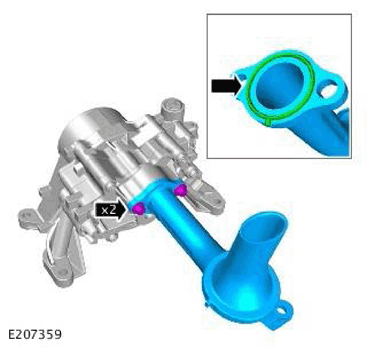

- Remove the 2 bolts.
- Remove the oil pickup pipe.
