INGENIUM I4 2.0L Diesel

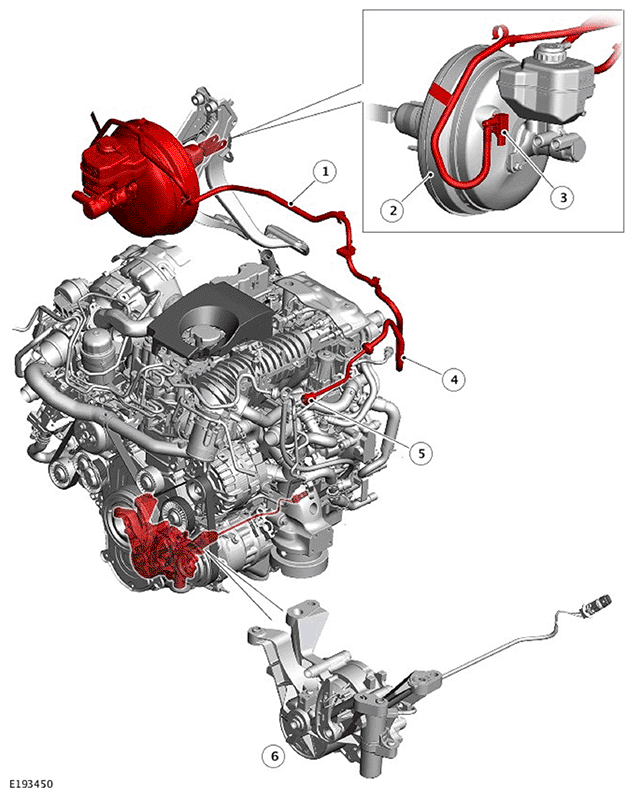

G11693899Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Vacuum Pipe
2 Brake Booster
3 Pressure sensor
4 Vacuum Pipe
5 Vacuum connector
6 Variable Flow Oil Pump with Integral Vacuum Pump
