Rear Brake Hose (G2284046): Removal

WARNING: Fluid loss is unavoidable, use absorbent cloth or a container to collect the fluid.

CAUTION: If brake fluid is spilt on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the wheel and tire.
Refer to: WHEEL AND TIRE .
WARNING: Fluid loss is unavoidable, use absorbent cloth or a container to collect the fluid.

CAUTION: If brake fluid is spilt on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Make a note of the routed position of the brake hose prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

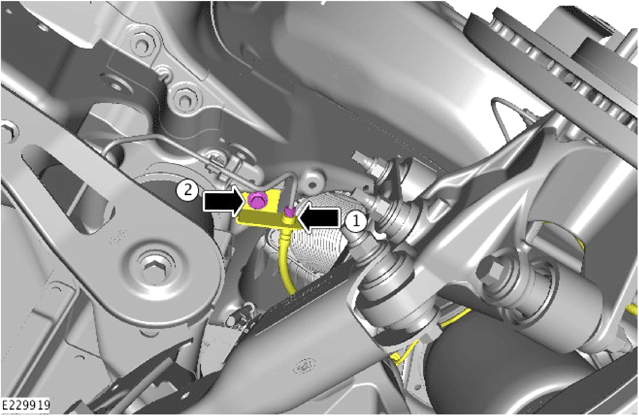

- Release the nut.
- Remove the brake hose retaining bolt.
WARNING: Fluid loss is unavoidable, use absorbent cloth or a container to collect the fluid.

CAUTION: If brake fluid is spilt on the paintwork, the affected area must be immediately washed down with cold water.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

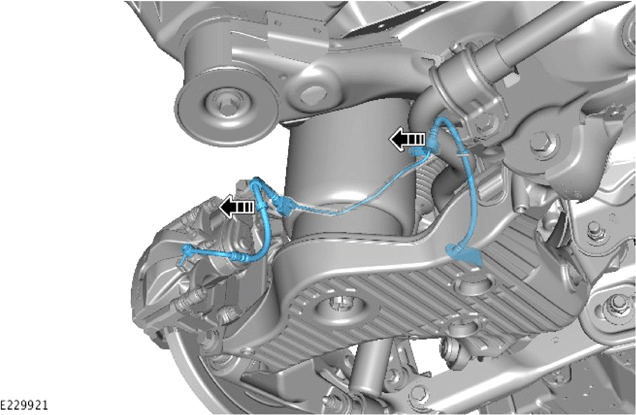

- Remove the 2 bolts.
- Remove the banjo bolt.
WARNING: Fluid loss is unavoidable, use absorbent cloth or a container to collect the fluid.

CAUTION: If brake fluid is spilt on the paintwork, the affected area must be immediately washed down with cold water.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the brake hose.
