Brake Pedal And Bracket (G1605599): Installation

CAUTION: Make sure that new nuts are installed.

Fig 1: Brake Pedal Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the brake pedal assembly.
- Install and tighten the 4 nuts in the sequence illustrated.
  Renew Part: Brake pedal mounting nut(s) Quantity: 4 .

  Torque : 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

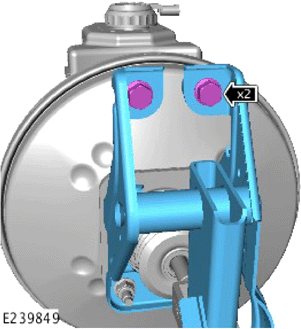

Install and tighten the 2 bolts.

Torque : 25 Nm
CAUTION: Wait 30 minutes from previous step before checking the torque.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Check the torque of the 4 nuts.

Torque : 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION:
- The brake pedal MUST NOT be depressed during this operation. Failure to follow this instruction will result in damage to the stop lamp switch.
- Make sure that excessive force is not used when installing the stop lamp switch. Failure to follow this instruction may result in damage to the stop lamp switch.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Make sure that the area around the component is clean and free of foreign material.

NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Inspect the shim, make sure it is fitted correctly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
