Head Up Display (G2162230): Removal

CAUTION: Take extra care not to damage the Head Up Display (HUD) lens when removing or installing the component.

Disconnect the startup battery ground cable.
Refer to: SPECIFICATIONS
Remove the instrument panel upper trim.
Refer to: INSTRUMENT PANEL UPPER TRIM
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

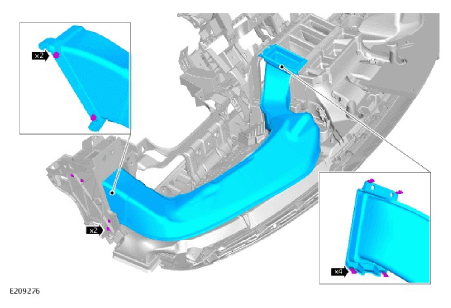

- Remove the 2 screws.
- Remove the air duct.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

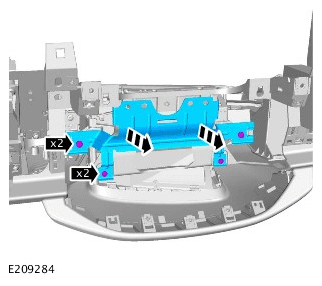

- Remove the 4 bolts.
- Remove the bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

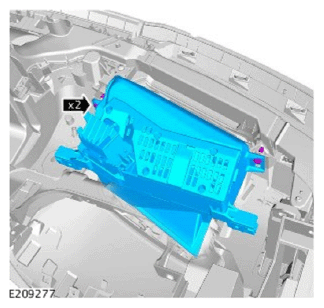

- Remove the 2 bolts.
- Remove the Head Up Display (HUD).
