Upper GLOVEBOX Lid (G2305882): Removal

CAUTION: Make sure only a suitable plastic tool is used to remove the trim panels.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Remove the upper glovebox.
Refer to: UPPER GLOVEBOX .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

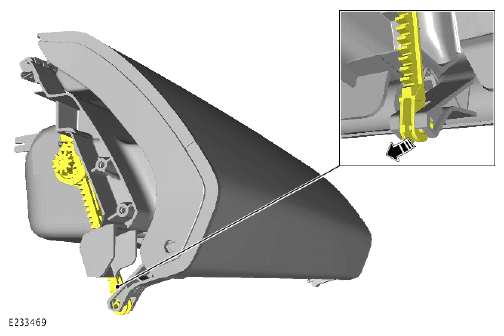

Release the upper glove box damper from the upper glove box lid.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

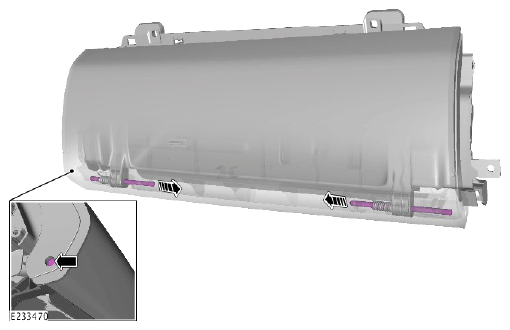

Using a suitable tool slide the hinge pins forward.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

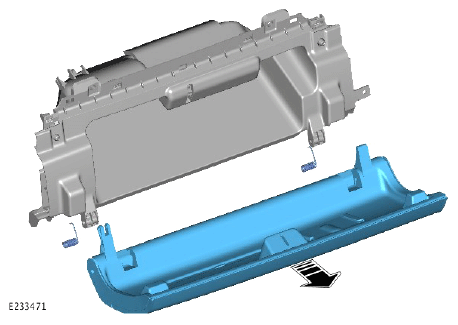

- Remove the upper glove box lid.
