Upper GLOVEBOX Lid (G2305882): Installation

Install the upper glove box lid.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

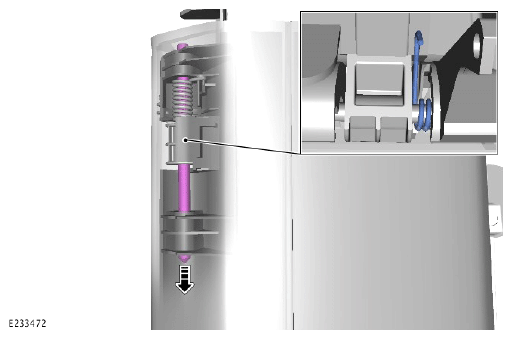

- Using a suitable tool insert the hinge pins.
- Ensure that the spring is installed correctly.
Install the upper glove box damper to the upper glove box lid.
Install the upper glovebox.
Refer to: UPPER GLOVEBOX .
