Upper GLOVEBOX (G1976375): Removal

CAUTION: Make sure only a suitable plastic tool is used to remove the trim panels.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

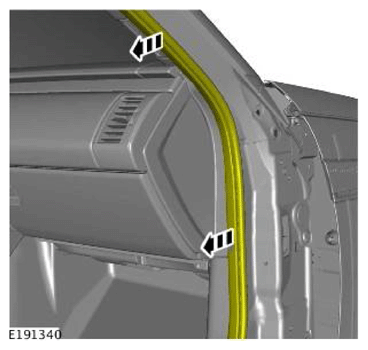

Remove the front door aperture seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

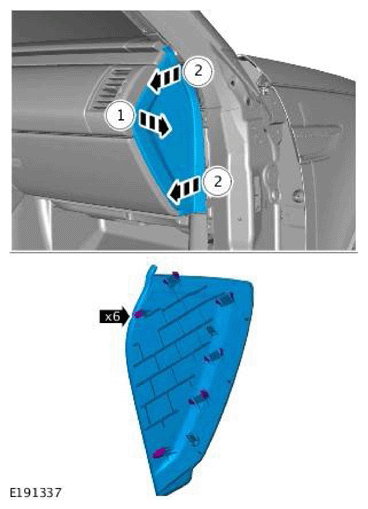

Remove the instrument panel end trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

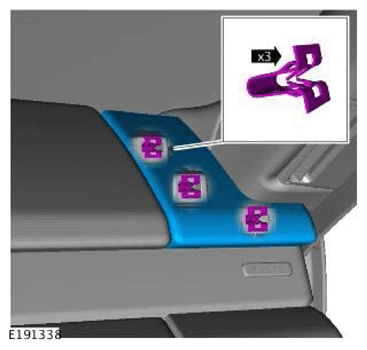

Remove the instrument panel top trim.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

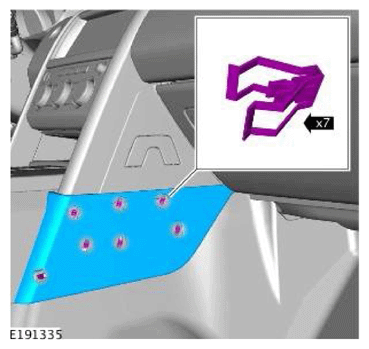

Remove the floor console side extension trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

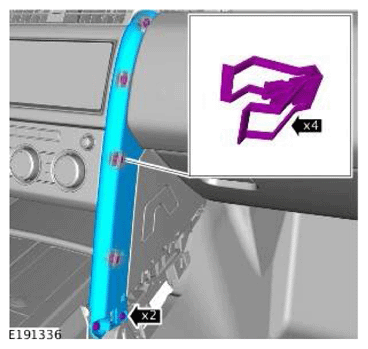

Remove the center console upright trim.
CAUTION: Do not use tools during this operation, removal of the component(s) must be carried out by hand.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

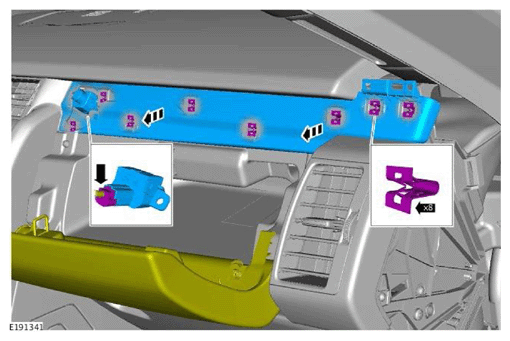

Remove the instrument panel veneer trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

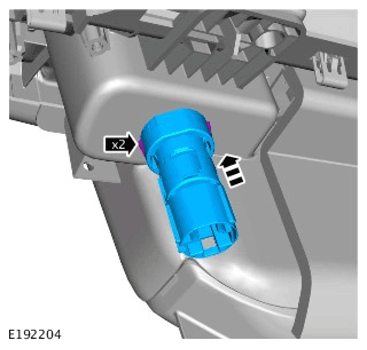

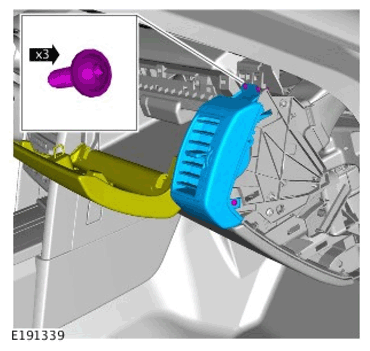

Remove the side vent.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

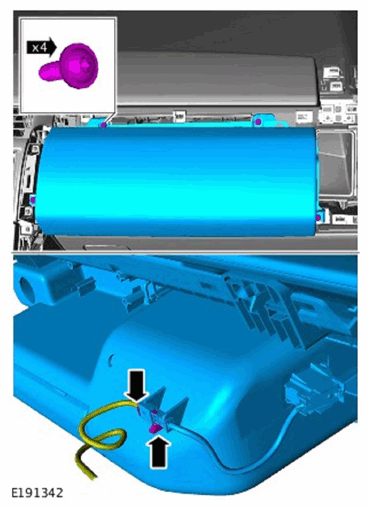

Remove the upper glovebox.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

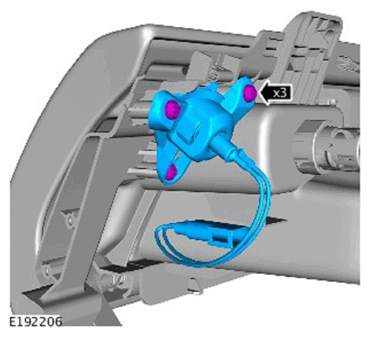

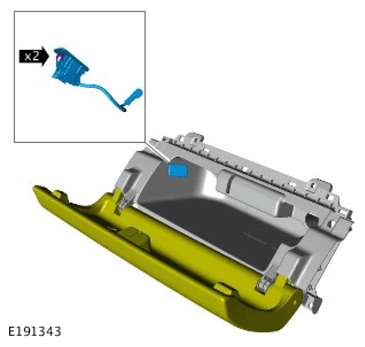

Disconnect the auxiliary power outlet socket electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the switch.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the auxiliary power outlet socket.
