Overhead Console (G1972063): Removal

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Removal steps in this procedure may contain installation details.

CAUTION: Make sure that the protective tape does not leave adhesive marks on the headliner.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

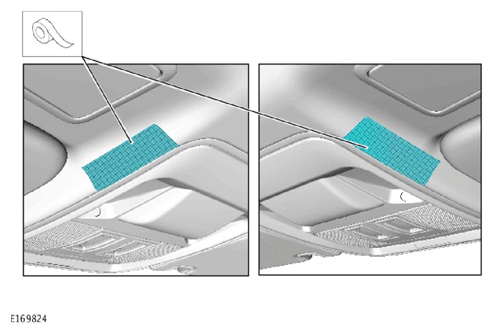

Apply protective tape to the headliner in the areas illustrated.
NOTE: Right illustration shown, Left is similar.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Position a suitable ruler inline with the sun visor, mark the tape as illustrated. Make another mark on the tape 15 mm away from the original mark.
CAUTION: Apply heatshrink or protective tape to the end of a suitable tool to protect the interior components.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Apply heatshrink or protective tape to the end of the screw-driver.
CAUTION: Care must be taken during this operation. Do not use excessive force or the headliner may distort and a new component will need to be installed.

multimedia:A supplement to the article is available.

Using a suitable tool, release the overhead console in the locations previously marked as illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

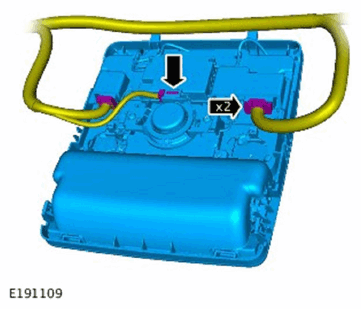

Disconnect the electrical connectors.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

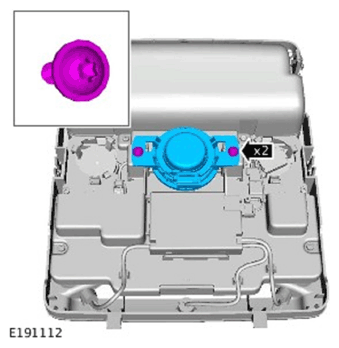

Remove the speaker.

Torque : 2 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

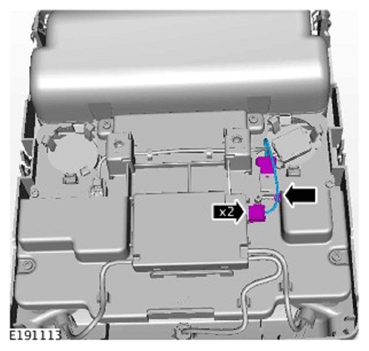

Disconnect and remove the cable.
CAUTION: Make sure the wiring harness and electrical connectors are not damaged during this operation.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

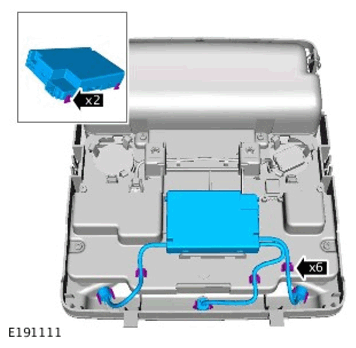

Remove the motion sensor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

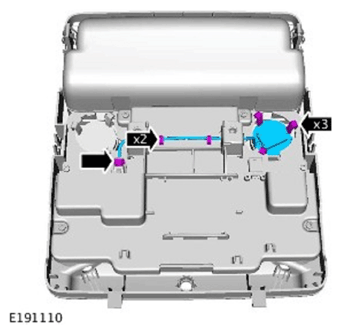

Remove the cellular phone microphone.
