Lower GLOVEBOX (G1976376): Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the upper glovebox.
Refer to: UPPER GLOVEBOX .
CAUTION:
- Make sure the wiring harness and electrical connectors are not damaged during this operation.
- Do not use tools during this operation, removal of the component(s) must be carried out by hand.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

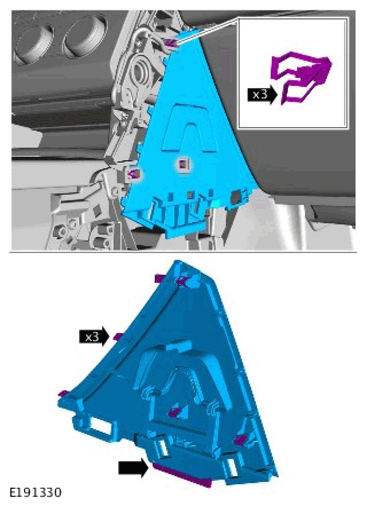

- Remove the trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

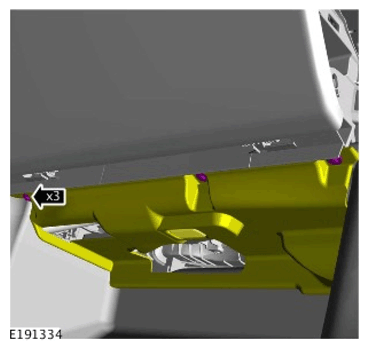

- Release the instrument panel lower section.
- Remove the screws.
  Torque : 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

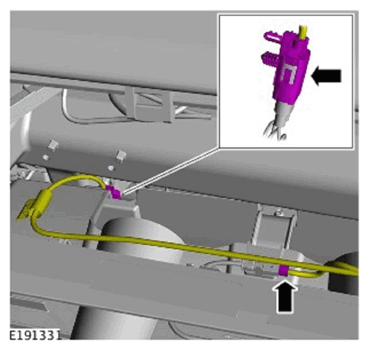

- Disconnect the electrical connector from the lower glove box lamp.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

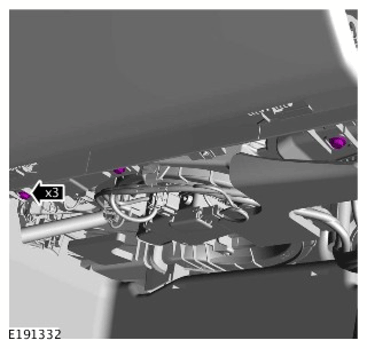

- Remove the screws.
  Torque : 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

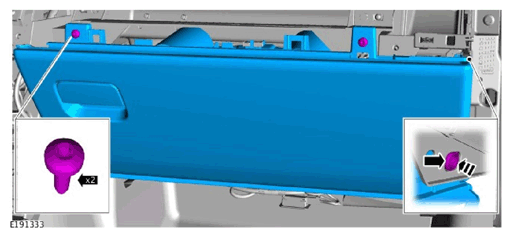

- Remove the screws.
  Torque : 9 Nm
