Instrument Panel Upper Trim (G2112989): Removal

NOTE:

Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.

Make sure the air bag supplemental restraint system (SRS) safe.
Refer to: STANDARD WORKSHOP PRACTICES .
Disconnect the battery ground cable.
Refer to: SPECIFICATIONS .
Remove the instrument panel lower trim.
Refer to: INSTRUMENT PANEL LOWER TRIM .
Remove the floor console.
Refer to: FLOOR CONSOLE .
Remove the lower glovebox.
Refer to: LOWER GLOVEBOX .
Remove the steering wheel.
Refer to: STEERING WHEEL (G1509124)
NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

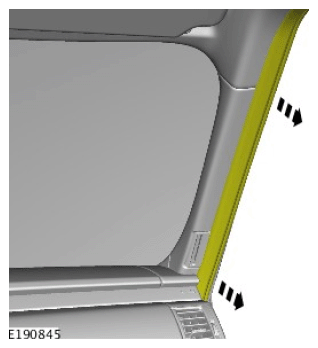

Release the door aperture seal.
NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

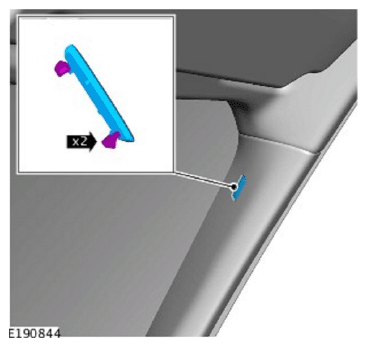

Remove the cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

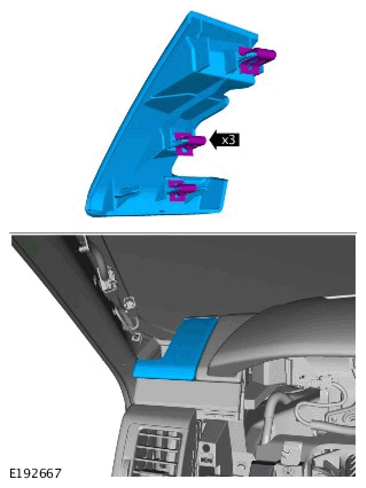

Remove the drivers side upper finisher.
CAUTION: Take extra care not to damage the component.

NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

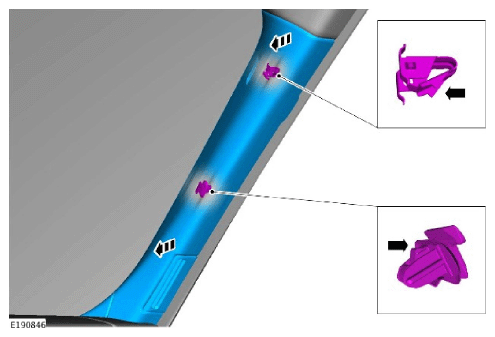

Remove the A-pillar upper trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

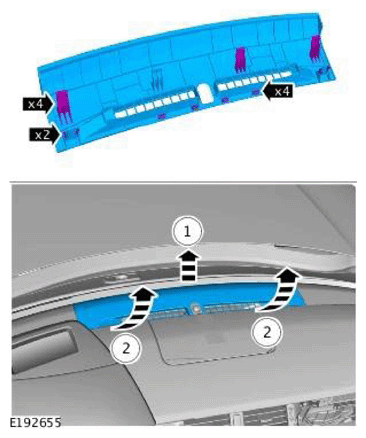

Remove the windshield defroster trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector.

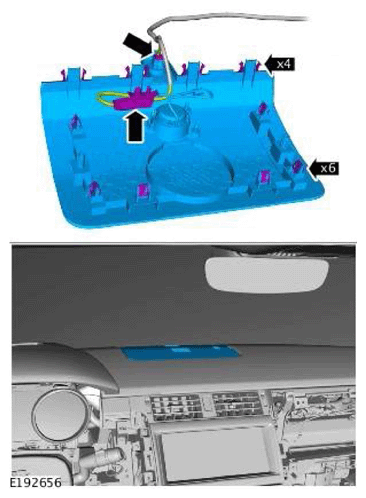

- Remove the instrument panel center speaker grille.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

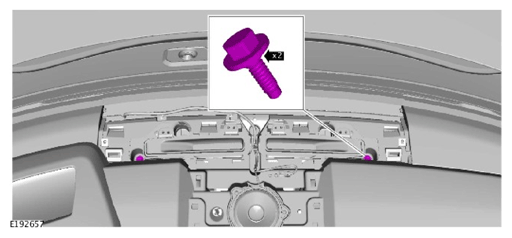

- Remove the 2 upper bolts.
  Torque : 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the touch screen trim cover.
  Torque : 5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connectors.

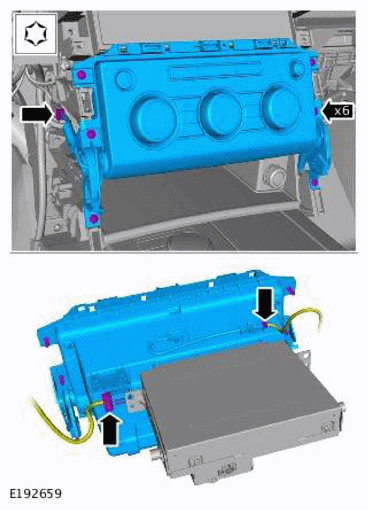

- Remove the integrated control panel.
  Torque : 5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the trim panel finisher.
  Torque : 5 Nm
NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the three retaining bolts.
  Torque : 5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector.
- Remove the touch screen.
  Torque : 5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector.
- Remove the DVD player.
  Torque : 5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector.
- Remove the center face level vent.
  Torque : 5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector.
- Remove the instrument cluster assembly.
  Torque : 1.7 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

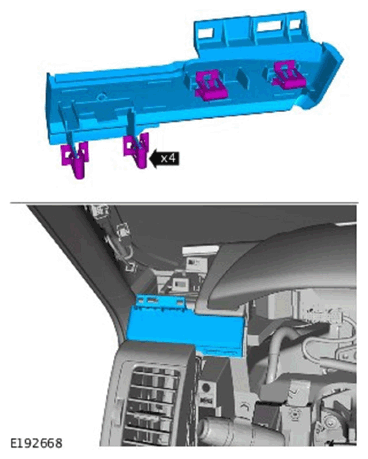

Remove the drivers side upper trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

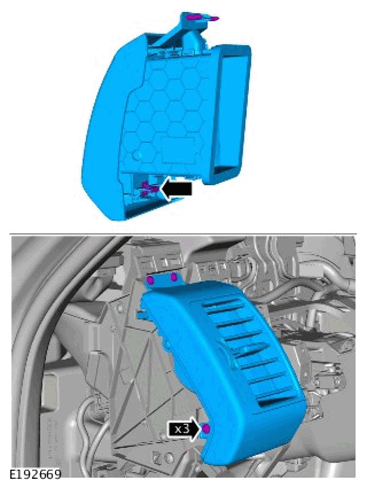

- Remove the driver side face level vent.
  Torque : 1.7 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the four retaining bolts.
  Torque : 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the cigar lighter housing.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the five retaining bolts.
  Torque : 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the three retaining bolts.
  Torque : 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the three retaining bolts.
  Torque : 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the component.
  Torque : 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the two electrical connectors.
CAUTION: Take extra care not to damage the surrounding components.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

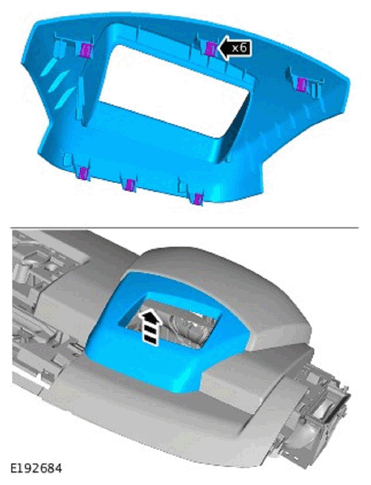

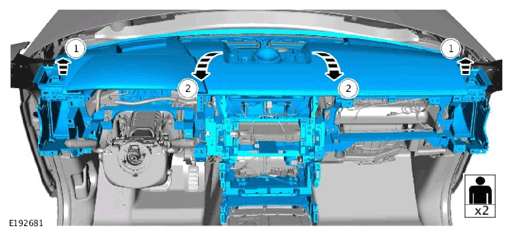

Remove the instrument panel upper trim.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

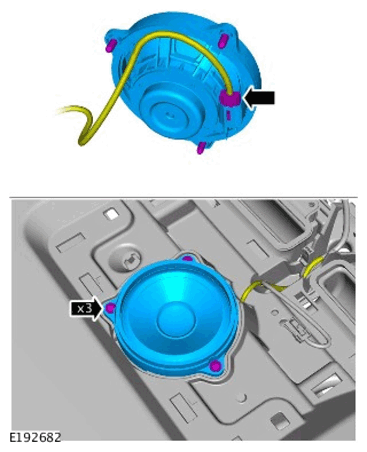

- Disconnect the electrical connector.
- Remove the center speaker.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

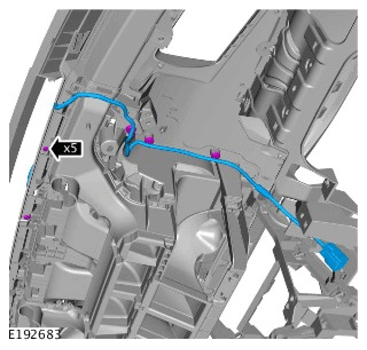

Remove the wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the Head Up Display (HUD) cover.
NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the two outer fixings.
NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

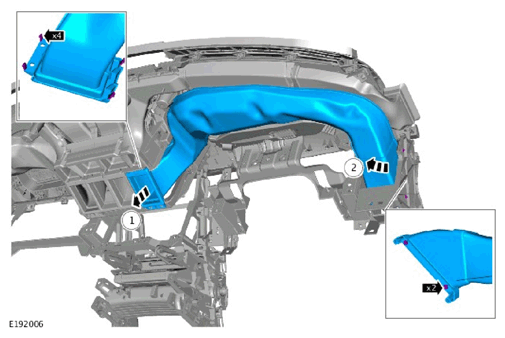

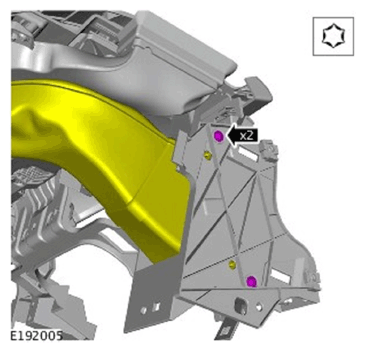

Remove the heater duct.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

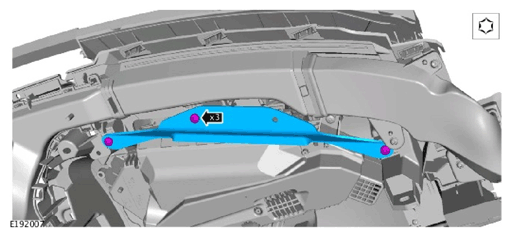

Remove the reinforcement plate.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

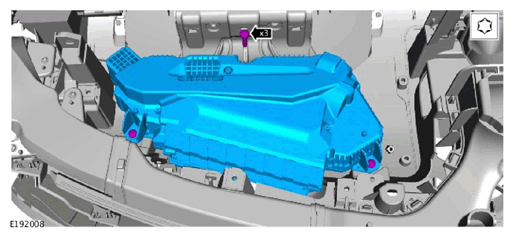

- Remove the Head Up Display (HUD).
  Torque : 5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

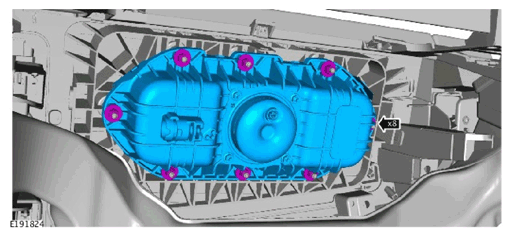

- Remove the Passenger Airbag Module (PAB).
  Torque : 5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

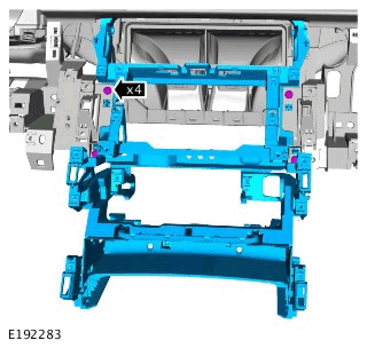

- Remove the instrument panel center reinforcement.
  Torque : 9 Nm
